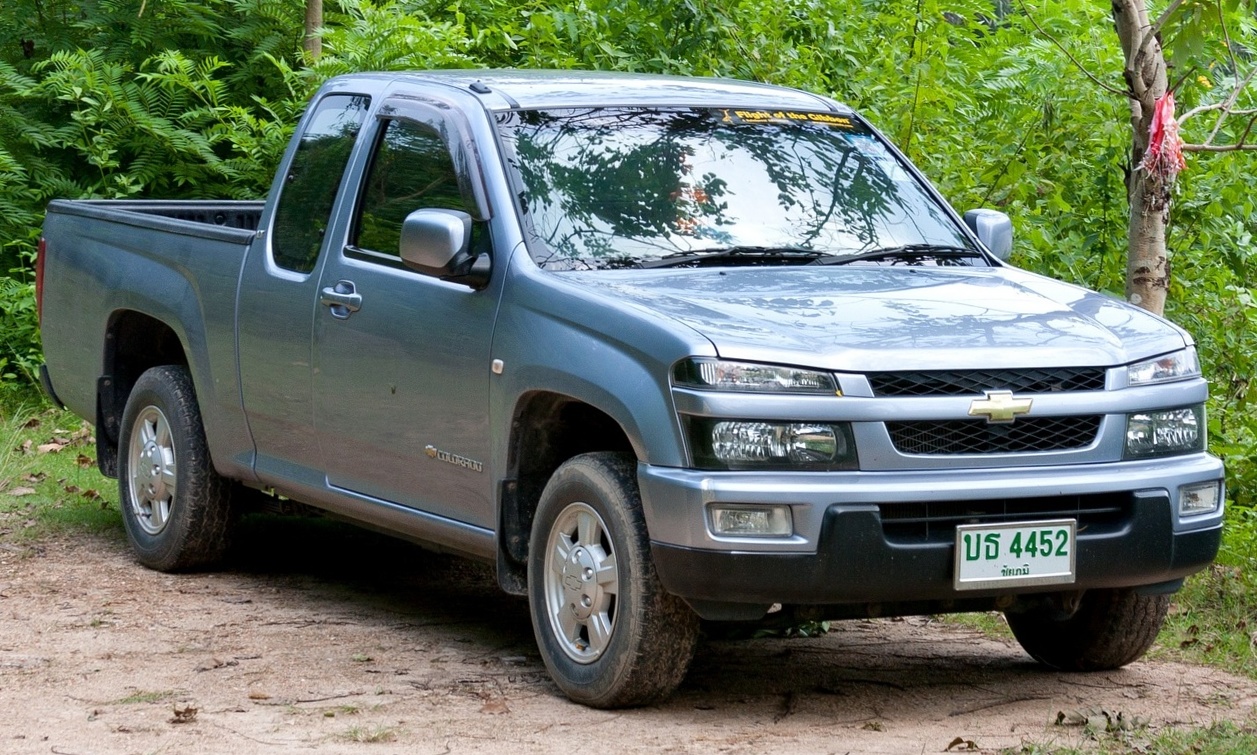

Chevrolet Colorado - Extended Cab Dimensions (2004-2012)
On this page you'll find the exact dimensions for the Chevrolet Colorado Extended Cab Base generation 1, made from 2004 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2004 - present Generation: 1 Type of van: pickup Model variant: Base Body style: Extended Cab Also known as: GMC Canyon Isuzu i-series Holden ColoradoDimensions in tables
Colorado truck bed dimensions (Extended Cab)
| Truck bed dimensions | Extended Cab |
|---|---|
| Volume (cu. ft.) | 43.9 |
| Length at floor | 73 |
| Inside height | 18.5 |
| Width at wheelhouse | 43 |
| Maximum width at floor | 57 |
Wheelbase of the Colorado:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase | 125.9 |
Exterior dimensions of the Colorado Extended Cab:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Overall length | 207 | 207 |
| Overall height | 64.8 | 64.8 |
Exterior width of the Extended Cab:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Overall width | 67.6 | 67.6 |
Extended Cab miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Min. ground clearance - front | 8.5 | 5 |
| Min. ground clearance - rear | 7.5 | 6.4 |
| Ground to top of load floor | 26.9 | 29.6 |
Interior dimensions
| 1st row dimensions | Extended Cab |
|---|---|
| Head room | 39.3 |
| Shoulder room | 57.1 |
| Hip room | 53 |
| Leg room | 42 |
| 2nd row dimensions | Extended Cab |
| Head room | 37.9 |
| Shoulder room | 57.1 |
| Hip room | 57.6 |
| Leg room | 23.1 |
