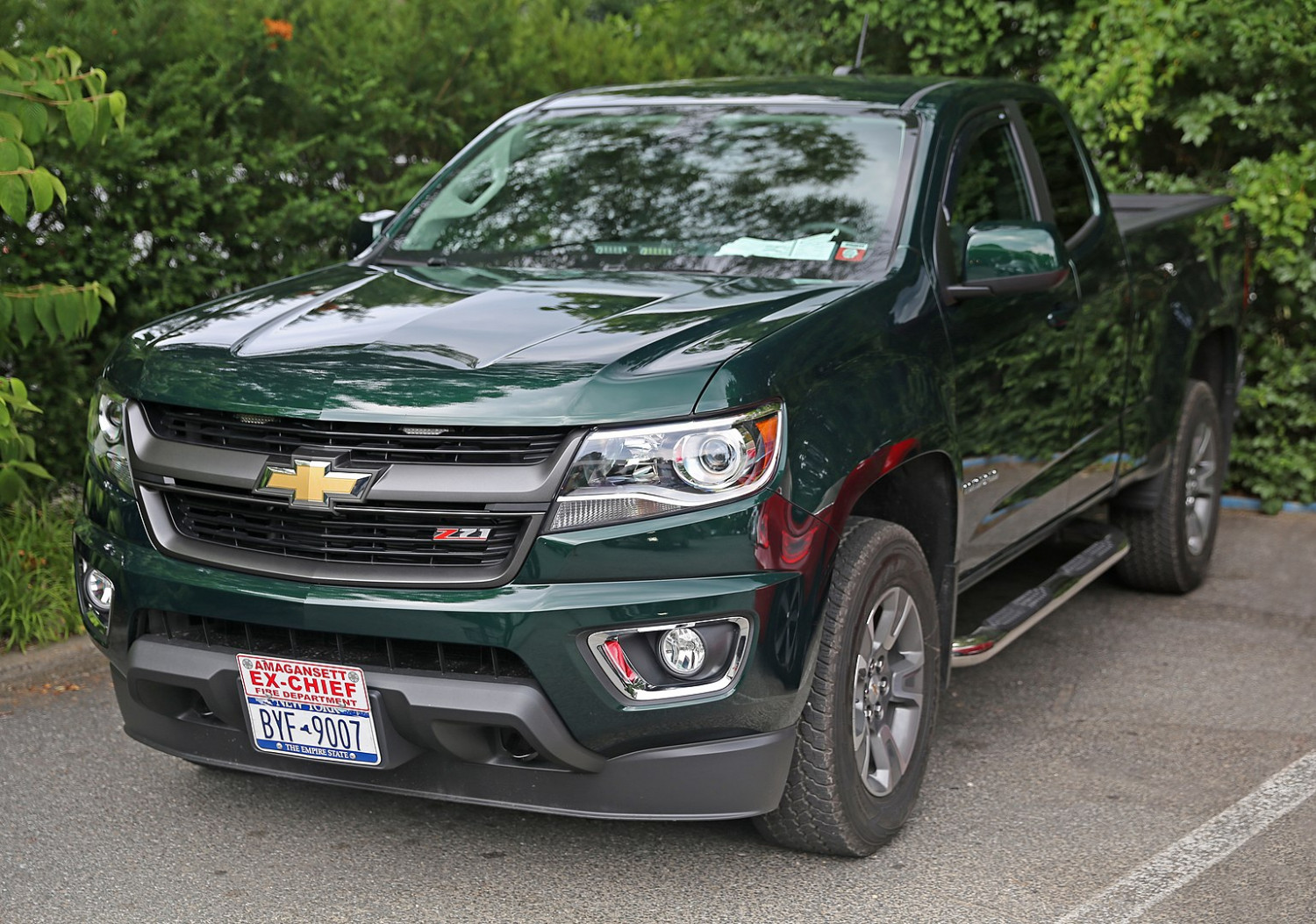

Chevrolet Colorado - Extended Cab Dimensions (2015-)
On this page you'll find the exact dimensions for the Chevrolet Colorado Extended Cab Base generation 2, made from 2015 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2015 - present Generation: 2 Type of van: pickup Model variant: Base Body style: Extended Cab Also known as: Chevrolet S10 Holden Colorado HSV SportsCat GMC CanyonDimensions in tables
Colorado truck bed dimensions (Extended Cab)
Truck bed dimensions | Long Box (6'2") |
---|---|
Volume (cu. ft.) | 49.9 |
Length at floor | 74 |
Inside height | 20.9 |
Width at wheelhouse | 44.4 |
Maximum width at floor | 57.8 |
Wheelbase of the Colorado:
Wheelbase | Length (inch) |
---|---|
Long Box (6'2") | 128.3 |
Exterior dimensions of the Colorado Extended Cab:
Dimension | 4x2 | 4x4 |
---|---|---|
Length - Long Box (6'2") | 212.7 | 212.7 |
Height - Long Box (6'2") | 70.4 | 70.3 |
Exterior width of the Extended Cab:
Exterior width | 4x2 | 4x4 |
---|---|---|
Width - Long Box (6'2") | 74.3 | 74.3 |
Extended Cab miscellaneous dimensions
Miscellaneous dimensions | 4x2 | 4x4 |
---|---|---|
Min. running ground clearance - Long Box (6'2") | 8.4 | 8.3 |
Ground of top of load floor - Long Box (6'2") | 34.2 | 34 |
Interior dimensions
1st row dimensions | Extended Cab |
---|---|
Head room | 41.4 |
Shoulder room | 57.5 |
Hip room | 55 |
Leg room | 45 |
2nd row dimensions | Extended Cab |
Head room | 36.7 |
Shoulder room | 57.3 |
Hip room | 52.2 |
Leg room | 28.6 |
Turning circle of the Colorado:
Turning circle: | Kerb-to-kerb | Wall-to-wall |
---|---|---|
Long Box (6'2") | 41.3 |
