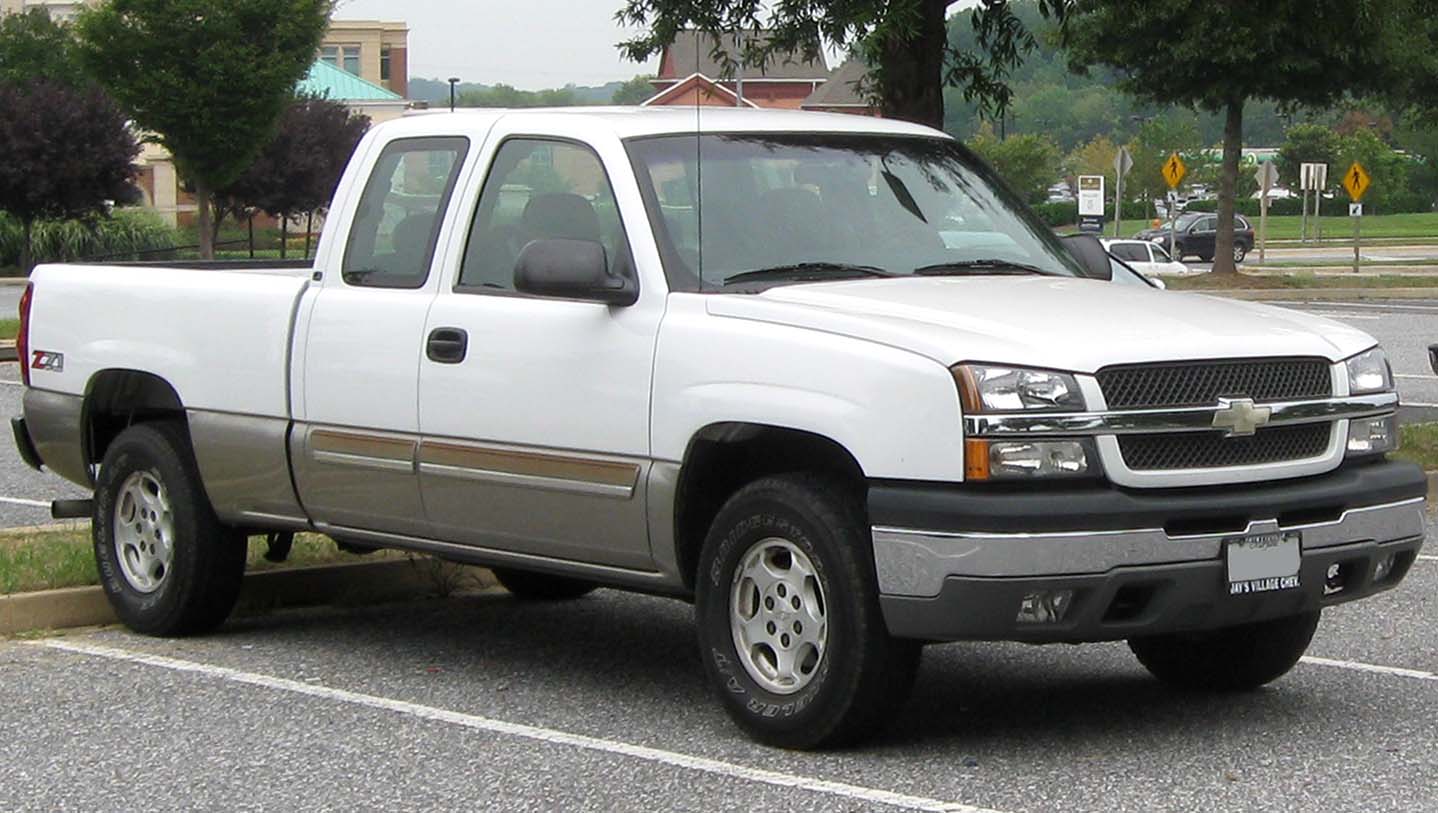

On this page you'll find the exact dimensions for the Chevrolet Silverado Extended Cab 1500, 1500HD generation 1, made from 1998 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

---

Dimensions in tables

Silverado truck bed dimensions (Extended Cab)

Truck bed dimensions	Fleetside Short Box	Fleetside Long Box
Volume (cu. ft.)	56.9	70.7
Length at floor	78.7	97.6
Inside height	19.5	19.5
Width at wheelhouse	50	50
Maximum width at floor	64.8	64.8

Wheelbase of the Silverado:

Wheelbase	Length (inch)
Sportside Box	143.5
Fleetside Short Box	143.5
Fleetside Long Box	157.5

Exterior dimensions of the Silverado Extended Cab:

Dimension	4x2	4x4
Overall length - Sportside Box	203.3	203.3
Overall length - Fleetside Short Box	227.8	227.8
Overall length - Fleetside Long Box	246.7	246.7
Cab length	138.7	138.7
Overall height - Fleetside Short Box	71.2	73.9
Overall height - Fleetside Long Box	70.8	73.7

Exterior width of the Extended Cab:

Exterior width	4x2	4x4
Width (excluding mirrors)	78.5	78.5

Extended Cab miscellaneous dimensions

Miscellaneous dimensions	4x2	4x4
Front overhang - Fleetside Short Box	36.9	36.9
Front overhang - Fleetside Long Box	36.9	36.9
Rear overhang - Fleetside Short Box	47.3	47.3
Rear overhang - Fleetside Long Box	52.2	52.6
Front ground clearance - Fleetside Short Box	8	8.5
Front ground clearance - Fleetside Long Box	8	8.5
Rear ground clearance - Fleetside Short Box	8.3	8.6
Rear ground clearance - Fleetside Long Box	8.3	8.6
Ground to top of load floor - Fleetside Short Box	30.5	32.9
Ground to top of load floor - Fleetside Long Box	30.2	32.5
Cab length	138.7	138.7

Interior dimensions

1st row dimensions	Extended Cab
Head room	41
Shoulder room	65.2
Hip room	61.4
Leg room	41.3
2nd row dimensions	Extended Cab
Head room	38.4
Shoulder room	66.3
Hip room	61.5
Leg room	33.7
