Chevrolet Silverado - Crew Cab Dimensions (2007-2014)

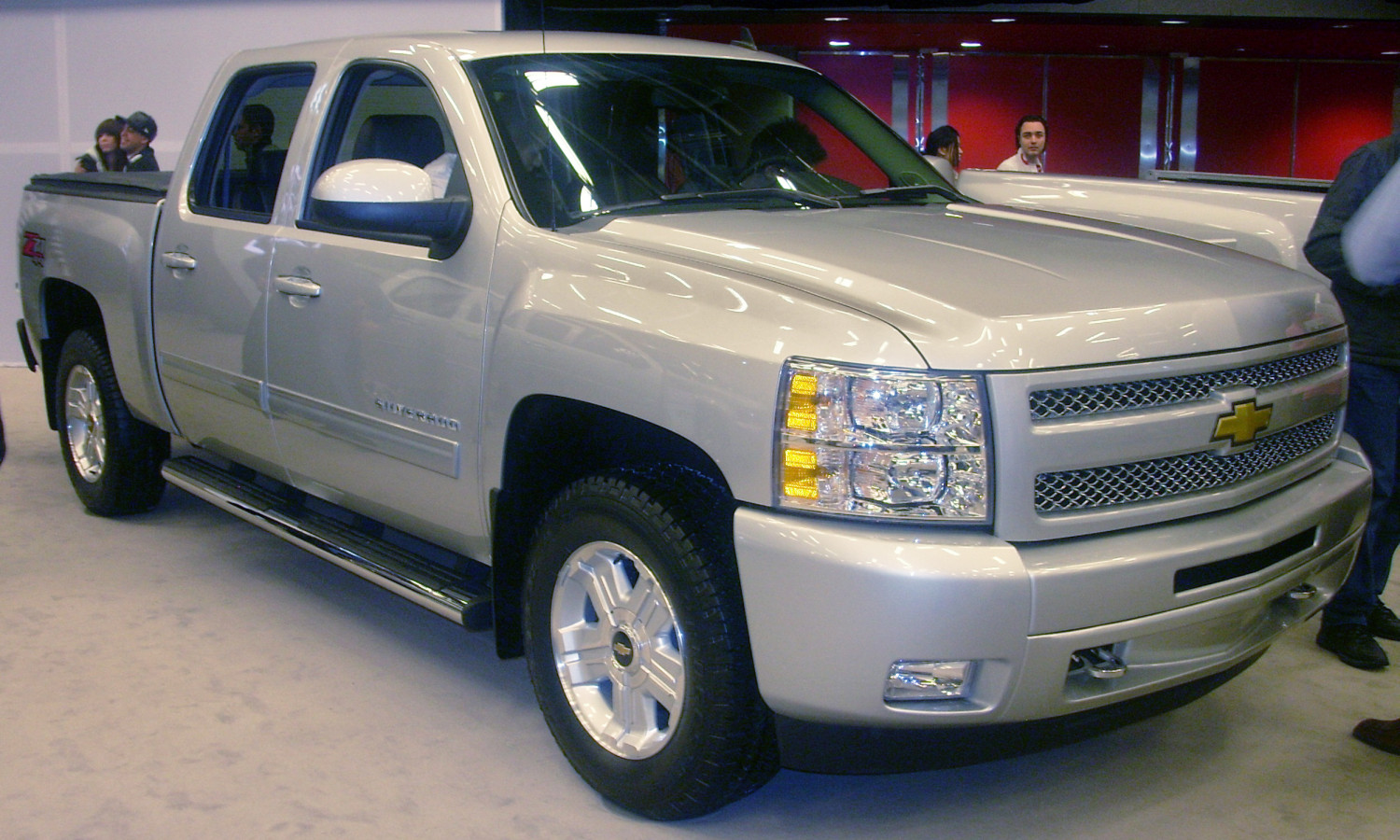

By Bull-Doser, Public domain, via Wikimedia Commons

On this page you'll find the exact dimensions for the Chevrolet Silverado Crew Cab 1500 generation 2, made from 2007 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2007 - present Generation: 2 Type of van: pickup Model variant: 1500 Body style: Crew Cab Also known as: VIA VTRUX GMC Sierra Chevrolet/GMC C/K

Dimensions in tables

Silverado truck bed dimensions (Crew Cab)

Truck bed dimensions Short Box (5.75') Standard Box (6.5')
Volume (cu. ft.) 49.6 56.9
Length at floor 69.2 78.7
Inside height 19.5 19.5
Width at wheelhouse 50 50
Maximum width at floor 60.2 64.8

Wheelbase of the Silverado:

Wheelbase Length (inch)
Short Box (5.75') 143.5
Standard Box (6.5') 153

Exterior dimensions of the Silverado Crew Cab:

Dimension 4x2 4x4
Overall length - Short Box (5.75') 227.5 227.5
Overall length - Standard Box (6.5') 237.2 237.2
Height - Short Box (5.75') 72.6 75
Height - Standard Box (6.5') 77 77.3

Exterior width of the Crew Cab:

Exterior width 4x2 4x4
Overall width - Short Box (5.75') 78.5 78.5
Overall width - Standard Box (6.5') 79.7 79.7
Width (mirrors folded) 81.5 81.5
Width (mirrors extended) 93.1 93.1

Crew Cab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Min. ground clearance - Short Box (5.75') 8.1 8.7
Min. ground clearance - Standard Box (6.5') 9.1 10.6
Ground to top of load floor - Short Box (5.75') 31.6 33.7
Ground to top of load floor - Standard Box (6.5') 33.7

Interior dimensions

1st row dimensions Crew Cab
Head room 40.7
Shoulder room 61.4
Hip room 63.9
Leg room 41.3
2nd row dimensions Crew Cab
Head room 40.2
Shoulder room 65.1
Hip room 61.4
Leg room 39.1
