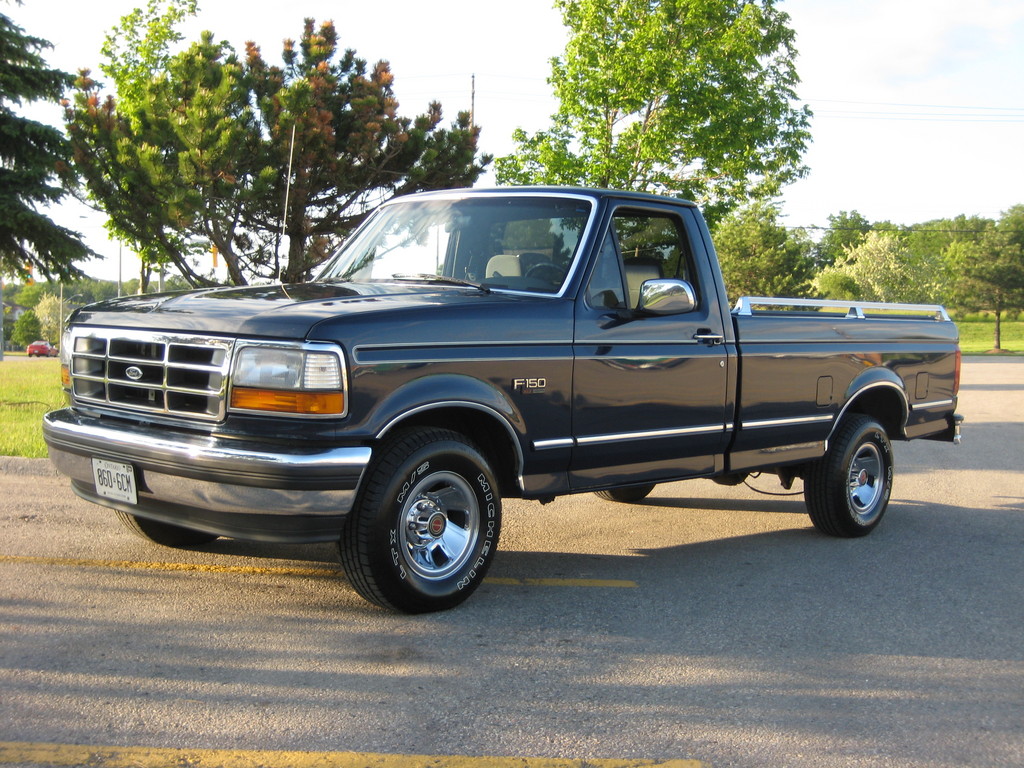

Example of a F150:
By Henry.hilliard - Own work, CC BY-SA 4.0
Are these dimensions right for you?
Production years:
1992 -
1997
Generation:
9
Type of van:
pickup
Body styles:
Regular Cab
Also called:
Ford Lobo
Ford F-1000
Dimensions in tables
Jump to dimension:
truck bed
outside
inside
wheelbase
clearance
load height
Truck bed dimensions
Styleside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
Length at floor
78
96
Inside height
32.5
37.3
Width at wheelhouse
62.31
62.31
Maximum width at floor
Flareside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
Length at floor
77.44
Inside height
Width at wheelhouse
58.69
58.69
Maximum width at floor
Wheelbase of the F150:
Wheelbase length:
4x2
4x4
Short (5.5')
119.9
119.9
Long (8')
138.5
138.5
FLARESIDE
119.9
120.2
Exterior length of the F150:
Exterior length
4x2
4x4
Short wheelbase (5.5')
202.2
202.2
Long wheelbase (6.5')
220.8
220.8
Flareside
205.9
207.4
Exterior height of the F150:
Exterior height
4x2
4x4
Short wheelbase (5.5')
72.7
75.5
Long wheelbase (8')
72.4
75.1
FLARESIDE
72.7
75.5
Exterior width of the F150:
Exterior width
4x2
4x4
Width (excluding mirrors)
78.4
78.4

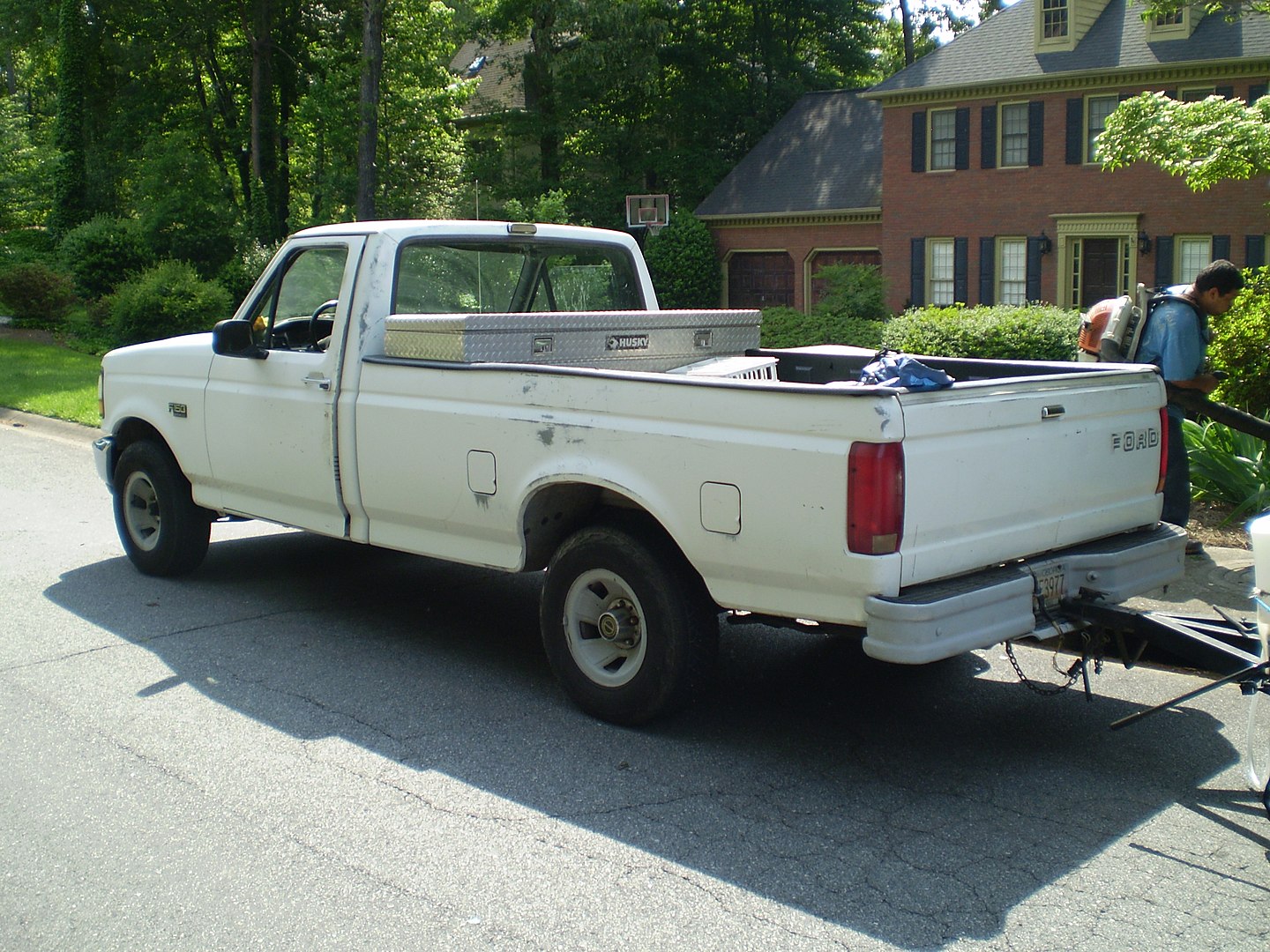

By (link: https://commons.wikimedia.org/w/index.php?curid=48468575 text: Rjluna2) - Own work, CC BY-SA 4.0
Miscellaneous dimensions
Exterior dimensions
4x2
4x4
Overhang - Front
65.4
65.4
Overhang - Rear
65.4
65.4
Load floor height - 5.5'
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'
Ground clearance - 6.5'
Ground clearance - 8'
Cab length
Interior dimensions
1st row
Styleside
Flareside
Head room
40.8
Shoulder room
63.8
Hip room
61.3
Leg room
40.9
2nd row
Styleside
Flareside
Head room
Shoulder room
Hip room
Leg room
