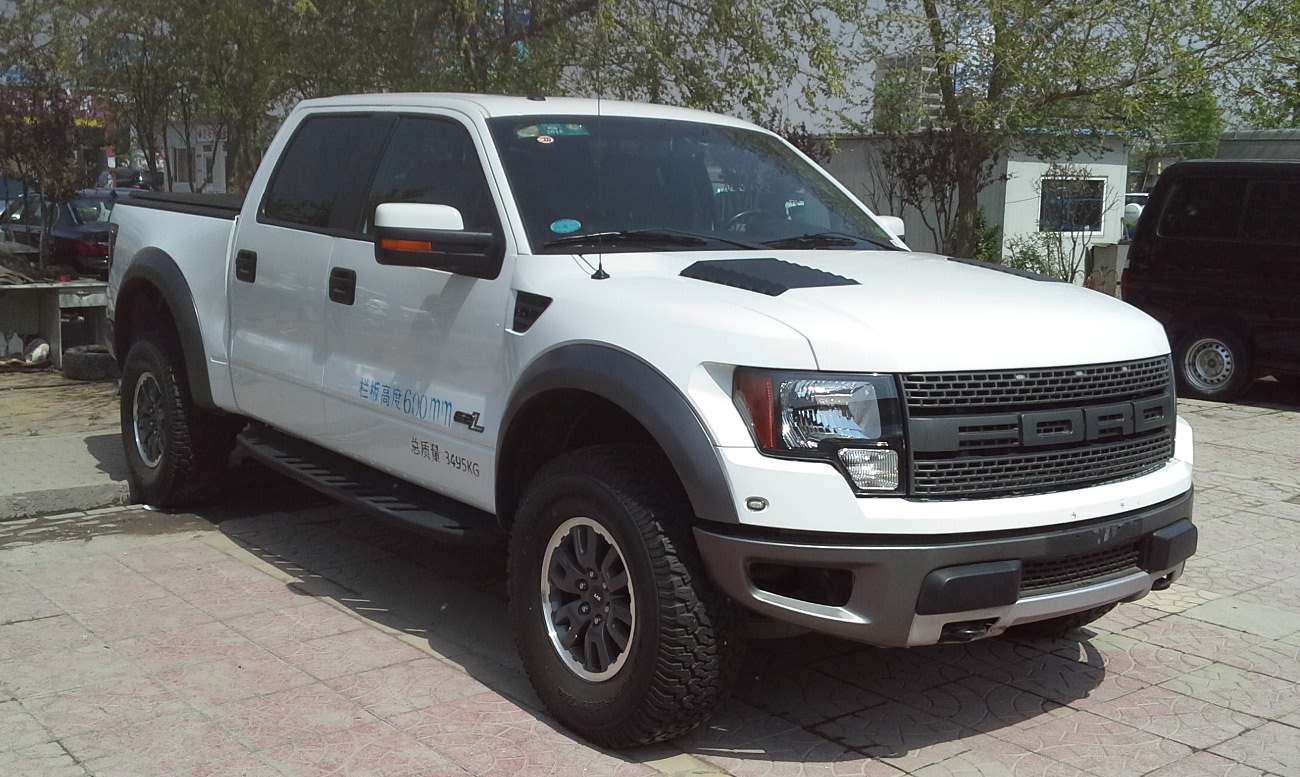

Example of a F150:
By Navigator84 - Own work, CC BY-SA 4.0
Are these dimensions right for you?
Production years:
2010 -
2014
Generation:
1
Type of van:
pickup
Body styles:
SuperCrew
Also called:
Ford F-150 SVT Raptor
Dimensions in tables
Jump to dimension:
truck bed
outside
inside
wheelbase
clearance
load height
Truck bed dimensions
Styleside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
55.4
65.5
81.3
Length at floor
67
78.8
97.4
Inside height
22.4
22.4
22.4
Width at wheelhouse
50
50
50
Maximum width at floor
65.2
65.2
65.2
Wheelbase of the F150:
Wheelbase length:
4x2
4x4
Short wheelbase (5.5')
145.2
Exterior length of the F150:
Exterior length
4x2
4x4
Short wheelbase (5.5')
232.1
Exterior height of the F150:
Exterior height
4x2
4x4
Short wheelbase (5.5')
78.4
Exterior width of the F150:
Exterior width
4x2
4x4
Width (excluding mirrors)
86.3
Width (including standard mirrors)
97
Width (standard mirrors folded)
86.3
Width (including trailer tow mirrors)
105.2
Miscellaneous dimensions
Exterior dimensions
4x2
4x4
Overhang - Front
38
Overhang - Rear
48.9
Load floor height - 5.5'
36.2
Ground clearance - 5.5'
9.3
Cab length
157
Interior dimensions
1st row
Styleside
Flareside
Head room
41
Shoulder room
65.9
Hip room
60.5
Leg room
41.4
2nd row
Styleside
Flareside
Head room
Shoulder room
Hip room
Leg room
