Dimensions of the Ford F150 Raptor (2017-2020) - SuperCab

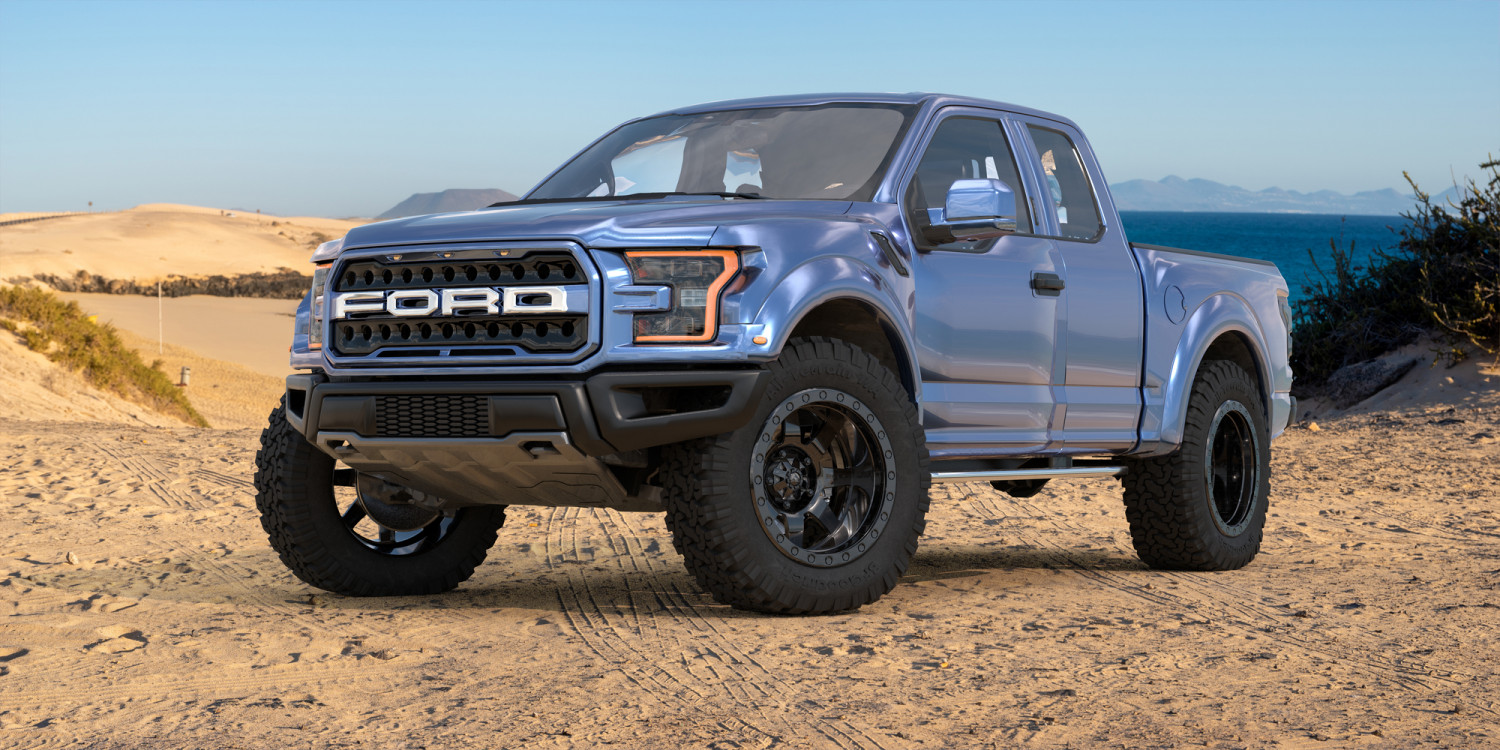

Example of a F150:

Are these dimensions right for you?

Production years: 2017 - 2020 Generation: 2 Type of van: pickup Body styles: SuperCab Also called: Ford F-150 Raptor Sutton CS 3500

Dimensions in tables

Truck bed dimensions

Styleside truck bed dimensions SWB MWB LWB
Volume (cu. ft.) 52.8
Length at floor 67.1
Inside height 21.4
Width at wheelhouse 50.6
Maximum width at floor 65.2
Flareside truck bed dimensions SWB MWB LWB
Volume (cu. ft.)
Length at floor
Inside height
Width at wheelhouse
Maximum width at floor

Wheelbase of the F150:

Wheelbase length: 4x2 4x4
Short (5.5') 134.2

Turning circle of the F150:

Turning circle: Kerb-to-kerb Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')

Exterior length of the F150:

Exterior length 4x2 4x4
Short wheelbase (5.5') 220

Exterior height of the F150:

Exterior height 4x2 4x4
Short wheelbase (5.5') 78.5

Exterior width of the F150:

Exterior width 4x2 4x4
Width (excluding mirrors) 86.3
Width (including standard mirrors) 96.8
Width (standard mirrors folded) 86.3

Miscellaneous dimensions

Exterior dimensions 4x2 4x4
Overhang - Front 37.1
Overhang - Rear 48.7
Load floor height - 5.5' 36.4
Ground clearance - 5.5' 9.9
Cab length 144.1

Interior dimensions

1st row Styleside Flareside
Head room 40.8
Shoulder room 66.7
Hip room 62.5
Leg room 43.9
2nd row Styleside Flareside
Head room
Shoulder room
Hip room
Leg room
