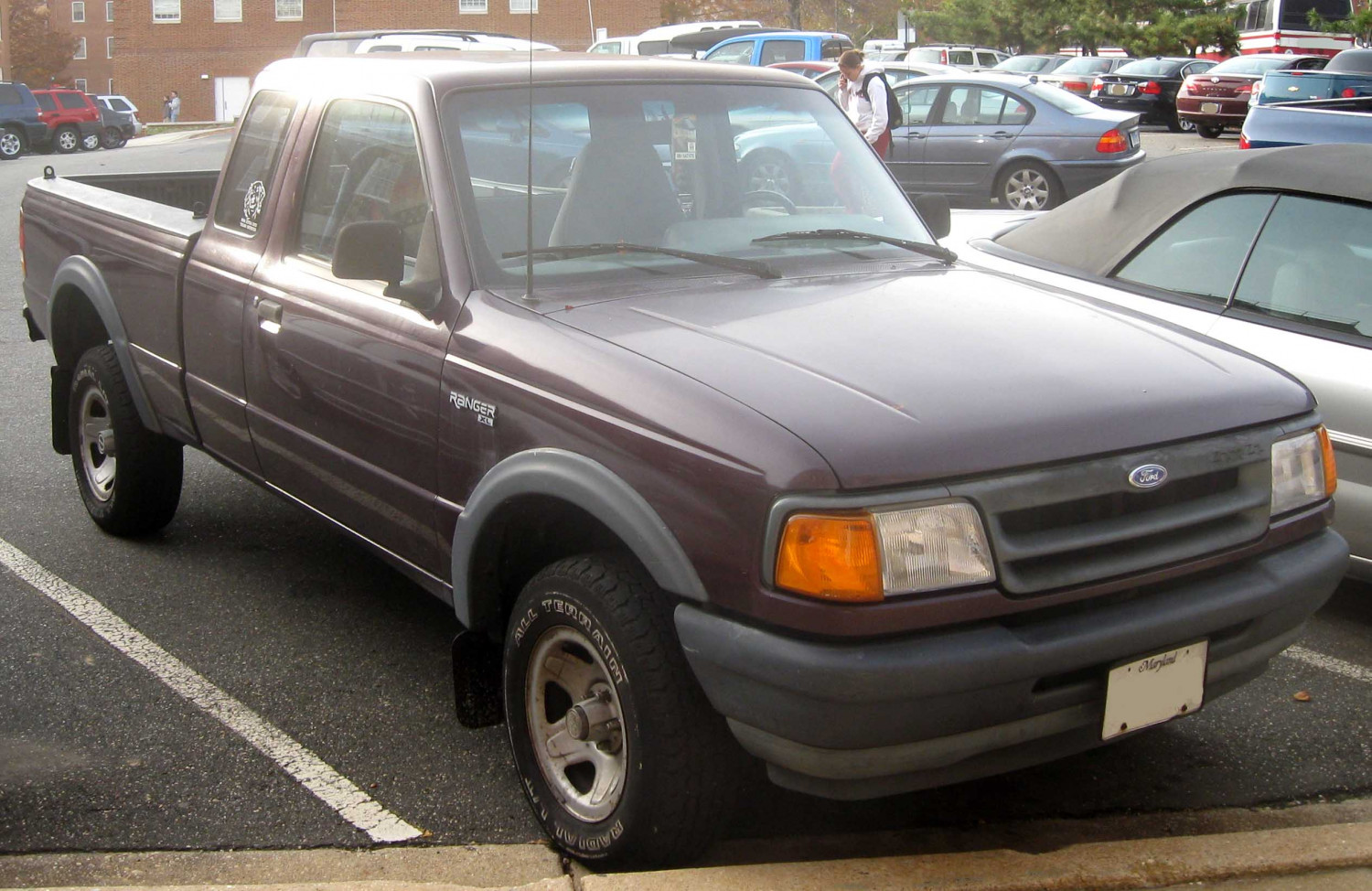

On this page you'll find the exact dimensions for the Ford Ranger USA Super Cab Base generation 2, made from 1993 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

---

Dimensions in tables

Ranger USA truck bed dimensions (Super Cab)

Truck bed dimensions	Standard Box
Volume (cu. ft.)	37.4
Length at floor	71.8
Inside height	16.4
Width at wheelhouse
Maximum width at floor	54

Wheelbase of the Ranger USA:

Wheelbase	Length (inch)
Standard box	125

Exterior dimensions of the Ranger USA Super Cab:

Dimension	4x2	4x4
Overall length - Standard Box	198.2	198.2
Cab length	121	121
Height - Standard Box	64.3	64.3

Exterior width of the Super Cab:

Exterior width	4x2	4x4
Width (excluding mirrors)	69.4	69.4

Super Cab miscellaneous dimensions

Miscellaneous dimensions	4x2	4x4
Overhang - Front	32.9	32.9
Overhang - Rear	43	43
Ground clearance	6.7	6.7
Load floor height	25.8	28.3
Cab length	121	121

Interior dimensions

1st row dimensions	All models
Head room	39.1
Shoulder room	54.6
Hip room	52.8
Leg room	42.4
