Ford Ranger USA - Super Crew Dimensions (2019-)

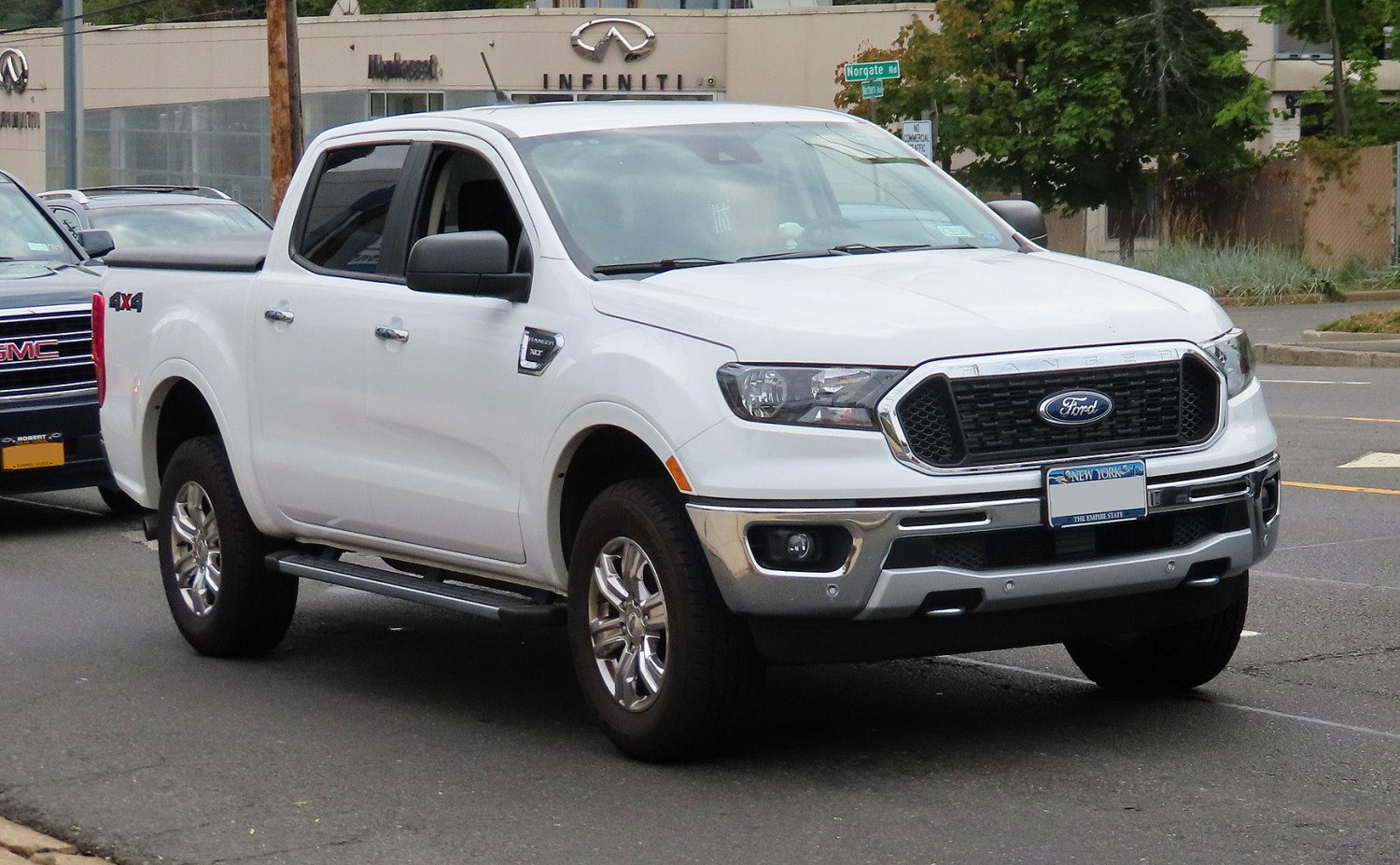

2020 Ford Ranger SuperCrew XLT - By Kevauto - Own work, CC BY-SA 4.0

On this page you'll find the exact dimensions for the Ford Ranger USA Super Crew Base generation 4, made from 2019 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2019 - present Generation: 4 Type of van: pickup Model variant: Base Body style: Super Crew Also known as: Ford Ranger EV Mazda B-Series/Mazda Truck

Dimensions in tables

Ranger USA truck bed dimensions (Super Crew)

Truck bed dimensions Standard Box
Volume (cu. ft.) 43.3
Length at floor 61
Inside height 20.9
Width at wheelhouse 44.8
Maximum width at floor 61.4

Wheelbase of the Ranger USA:

Wheelbase Length (inch)
Standard box 126.8

Exterior dimensions of the Ranger USA Super Crew:

Dimension 4x2 4x4
Overall length - Standard Box 210.8 210.8
Height - Standard Box 71.1 71.5

Exterior width of the Super Crew:

Exterior width 4x2 4x4
Width (excluding mirrors) 73.3 73.3
Width (including standard mirrors) 85.8 85.8
Width (standard mirrors folded) 77.8 77.8

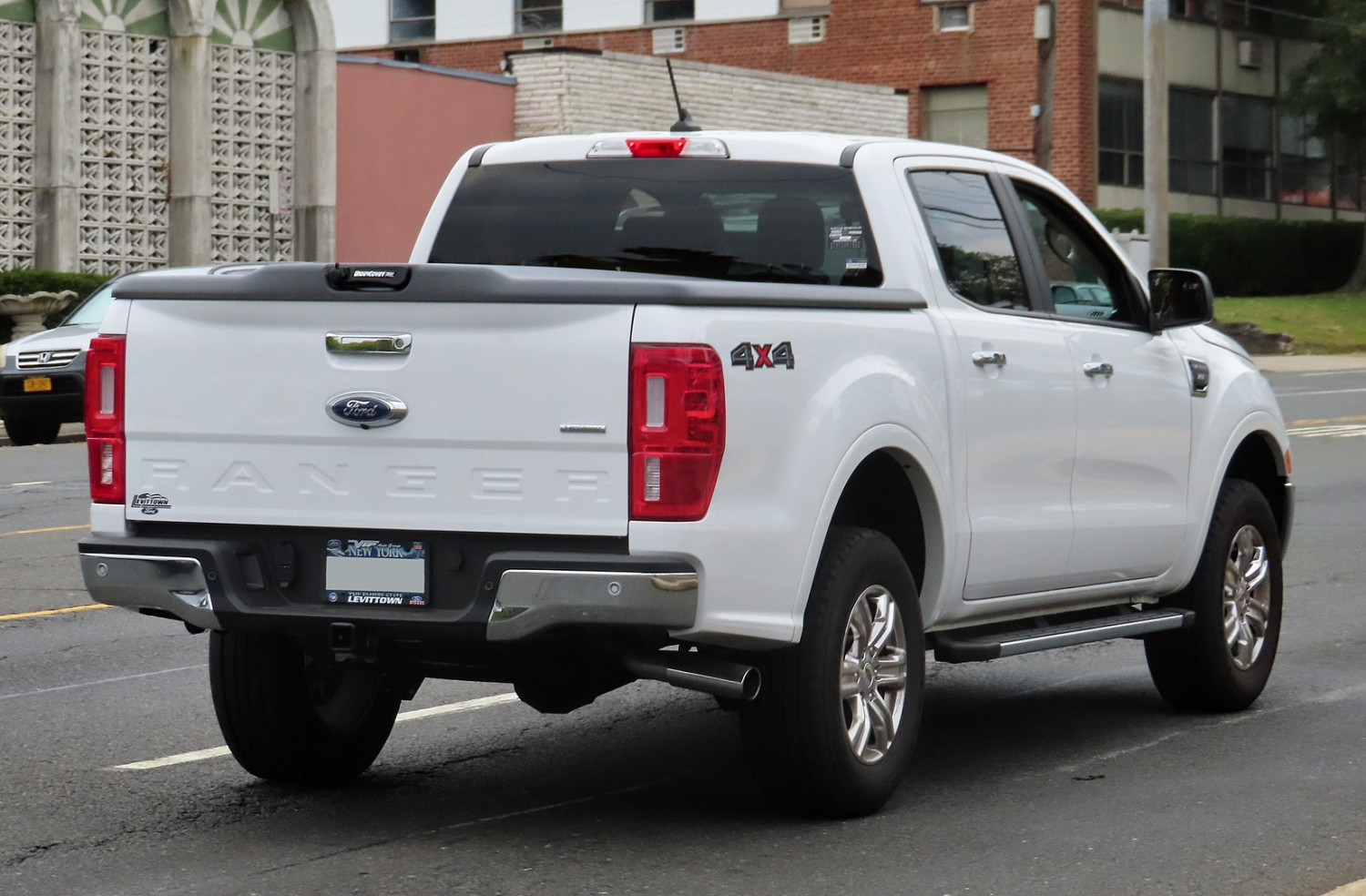

Example of a Ranger USA
By (link: https://commons.wikimedia.org/w/index.php?curid=94714146 text: Kevauto) - Own work, CC BY-SA 4.0

Super Crew miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Overhang - Front 35.8 35.8
Overhang - Rear 48.2 48.2
Ground clearance 8.4 8.9

Interior dimensions

1st row dimensions Super Crew
Head room 39.8
Shoulder room 43.1
Hip room 55.8
Leg room 56.7
2nd row dimensions Super Crew
Head room 38.3
Shoulder room 34.5
Hip room 53.5
Leg room 56.3
