Dimensions of the Ford Super Duty (2017-on) - SuperCab

Jump to dimension: truck bed outside inside wheelbase clearance load height

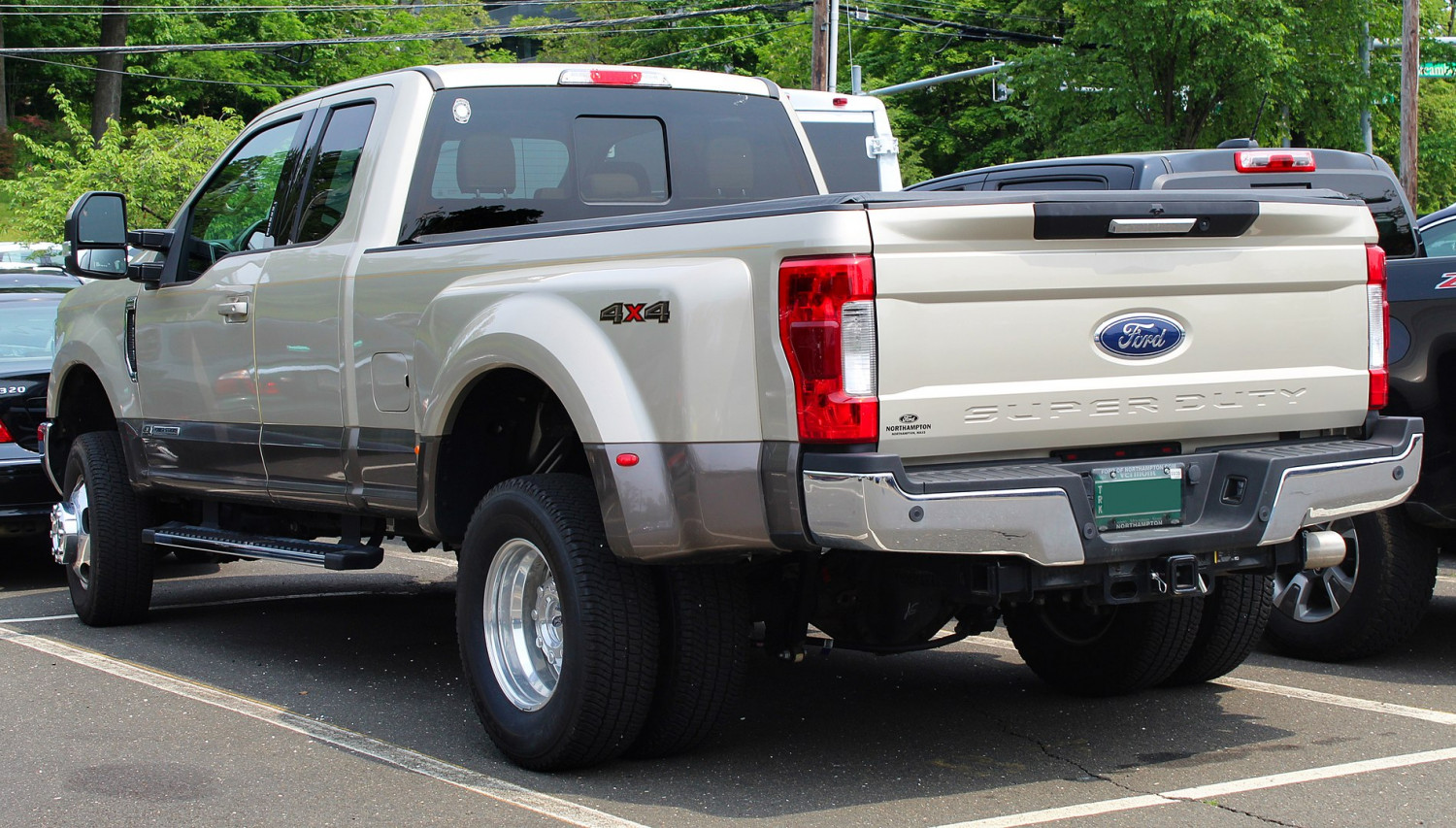

By Kevauto - Own work, CC BY-SA 4.0

Are these dimensions right for you?

Production years: 2017 - present Generation: 4 Type of van: pickup Body styles: SuperCab

Dimensions in tables

Jump to dimension: truck bed outside inside wheelbase clearance load height

Truck bed dimensions

Truck bed dimensions 4x2 SWB 4x4 SWB 4x2 LWB 4x4 LWB
Volume (cu. ft.) 65.4 65.4 78.5 78.5
Length at floor 81.9 81.9 98.1 98.1
Cargo box height 21.1 21.1 21.1 21.1
Width at wheelhouse 50.5 50.5 50.5 50.5
Maximum width at floor 66.9 66.9 66.9 66.9

Wheelbase of the Super Duty:

Wheelbase length: 4x2 4x4
Short (5.5') 148 148
Long (8') 164.2 164.2

Exterior dimensions of the Super Duty:

4x2 SWB 4x4 SWB 4x2 LWB 4x4 LWB
Overall length 238.2 238.2 254.4 254.4
Cab length
Height F250 SRW 78.4 81.5 78.1 81.4
Height F350 SRW 78.2 81.3 78 81.2
Height F350 DRW 77.8 80.9

Exterior width of the Super Duty:

Exterior width 4x2 4x4
Width (excluding mirrors) 80 80
Width (including standard mirrors) 96 96
Width (standard mirrors folded) 105.9 105.9
Width (including trailer tow mirrors) 110 110

Miscellaneous dimensions

Exterior dimensions 4x2 SWB 4x4 SWB 4x2 LWB 4x4 LWB
Overhang - Front 38.2 38.2 38.2 38.2
Overhang - Rear 52 52 52 52
Ground clearance F250 SRW 8.5 8.2 8.5 8.2
Ground clearance F350 SRW 8.5 8.2 8.5 8.2
Ground clearance F350 DRW 7.8 7.8

Load floor height

Load floor height 4x2 SWB 4x4 SWB 4x2 LWB 4x4 LWB
Load floor height F250 SRW 35.6 38.3 35.3 38.1
Load floor height F350 SRW 35.4 38.1 35 37.9
Load floor height F350 DRW 34.4 37.2

Interior dimensions

1st row 4x2 SWB 4x4 SWB 4x2 LWB 4x4 LWB
Head room 40.8 40.8 40.8 40.8
Shoulder room 66.7 66.7 66.7 66.7
Hip room 62.5 62.5 62.5 62.5
Leg room 43.9 43.9 43.9 43.9
2nd row 4x2 SWB 4x4 SWB 4x2 LWB 4x4 LWB
Head room 40.3 40.3 40.3 40.3
Shoulder room 65.8 65.8 65.8 65.8
Hip room 64.7 64.7 64.7 64.7
Leg room 33.5 33.5 33.5 33.5

Turning circle of the Super Duty:

Turning circle: Kerb-to-kerb Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')
