Honda Ridgeline - RTS Dimensions (2006-2016)

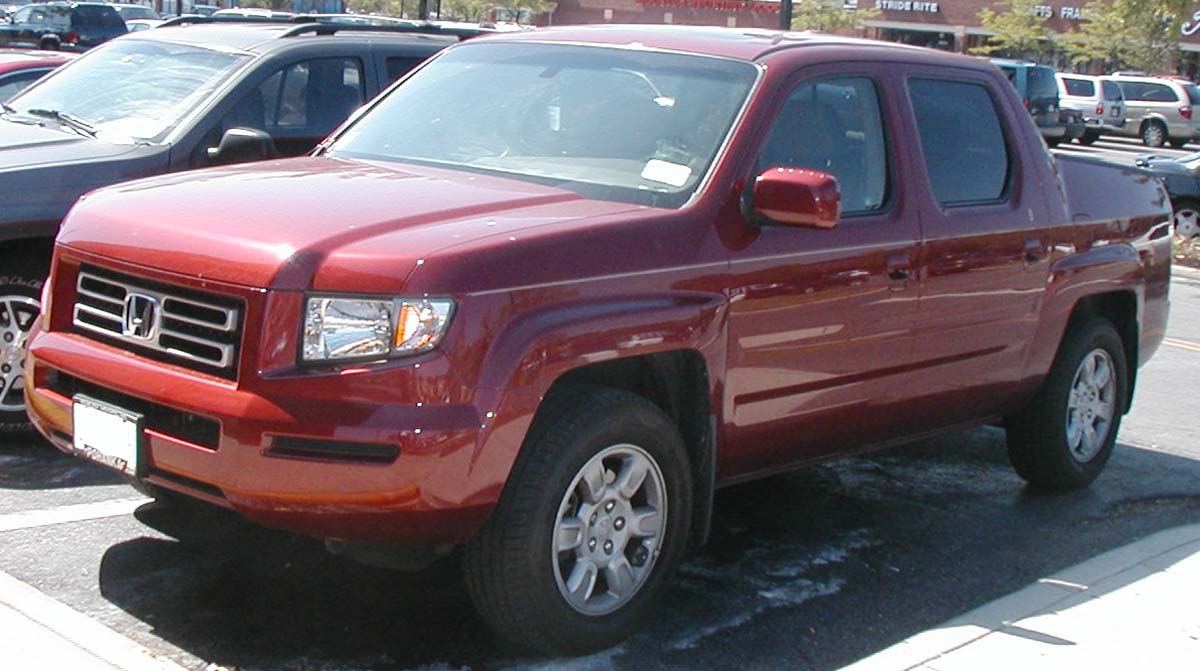

IFCAR, Public domain, via Wikimedia Commons

On this page you'll find the exact dimensions for the Honda Ridgeline RTS Base generation 1, made from 2006 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2006 - present Generation: 1 Type of van: pickup Model variant: Base Body style: RTS Also known as: YK1

Dimensions in tables

Ridgeline truck bed dimensions (RTS)

Truck bed dimensions RTS
Volume (cu. ft.) 8.5
Length at floor 60
Inside height 20.7
Width at wheelhouse 49.5
Maximum width at floor

Wheelbase of the Ridgeline:

Wheelbase Length (inch)
Wheelbase 122

Exterior dimensions of the Ridgeline RTS:

Dimension 4x2 4x4
Length 206.8 206.8
Height 70.3 70.3

Exterior width of the RTS:

Exterior width 4x2 4x4
Overall width - no mirrors 76.3 76.3
Overall width - with mirrors 87.3 87.3

RTS miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Ground clearance 8.2 8.2

Interior dimensions

1st row dimensions RTS
Head room 40.7
Shoulder room 63.2
Hip room 57.6
Leg room 40.8
2nd row dimensions RTS
Head room 39.1
Shoulder room 62.6
Hip room 57.2
Leg room 36.4

Turning circle of the Ridgeline:

Turning circle: Kerb-to-kerb Wall-to-wall
Turning circle diameter 42.6

Did you find the answer to your specific question?
👍 0 👎 0
