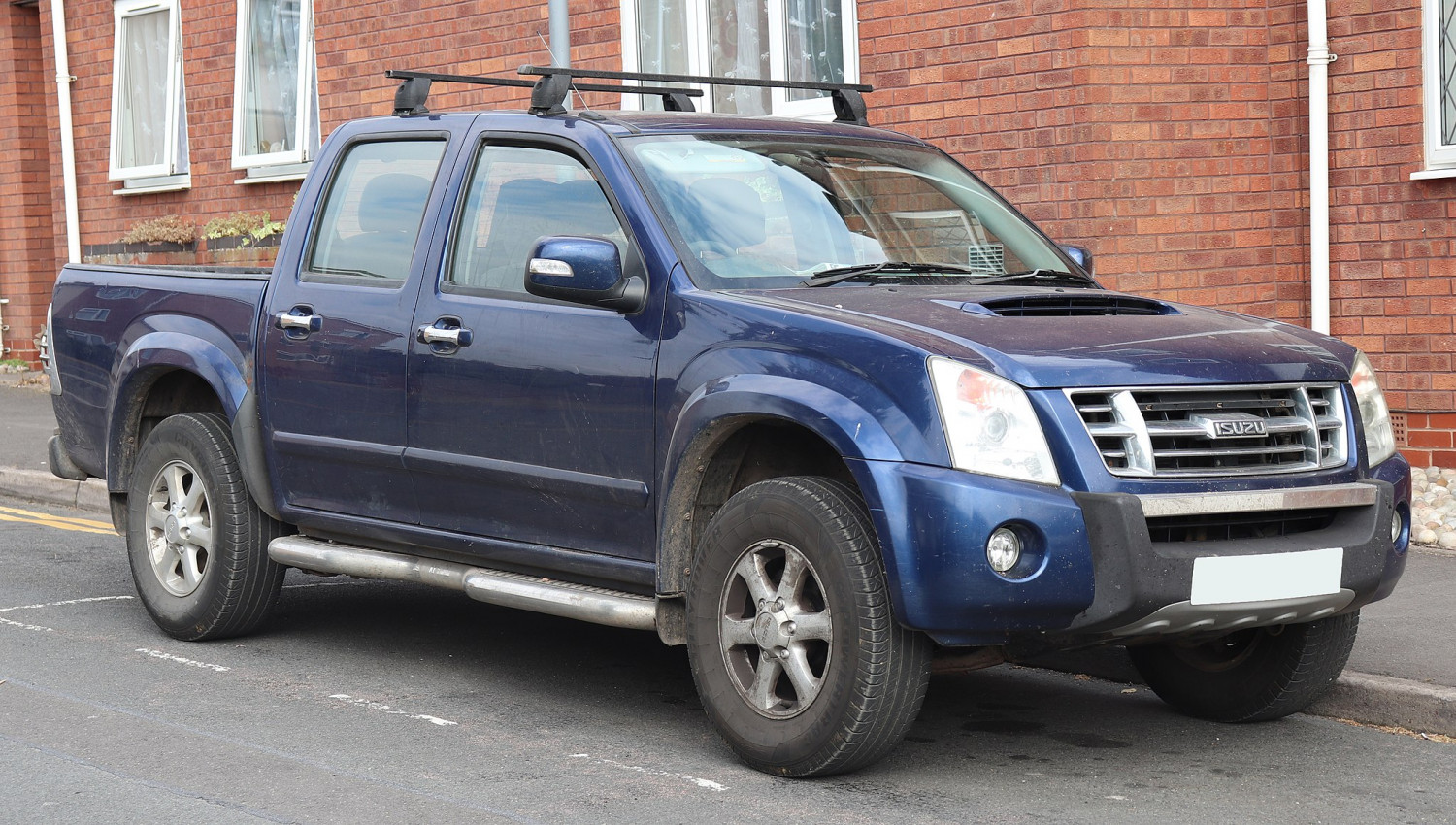

Isuzu D-Max - Crew Cab Dimensions (2002-2012)
On this page you'll find the exact dimensions for the Isuzu D-Max Crew Cab SX, LS, LS-M, LS-U generation 1, made from 2002 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2002 - present Generation: 1 Type of van: pickup Model variant: SX LS LS-M LS-U Body style: Crew Cab Also known as: Chevrolet D-Max Chevrolet LUV D-Max Chevrolet T-Series Holden Rodeo Isuzu KB Isuzu LB Isuzu Rodeo Zamyad Padra Isuzu DvoDimensions in tables
D-Max truck bed dimensions (Crew Cab)
Truck bed dimensions | Crew Cab - LS-U |
---|---|
Volume (cu. ft.) | |
Length at floor | 1380 |
Inside height | 480 |
Width at wheelhouse | 1085 |
Maximum width at floor | 1530 |
Wheelbase of the D-Max:
Wheelbase | Length (inch) |
---|---|
Wheelbase (mm) | 3050 |
Exterior dimensions of the D-Max Crew Cab:
Dimension | 4x2 | 4x4 |
---|---|---|
Overall length (mm) | 5030 | |
Overall height (mm) | 1735 |
Exterior width of the Crew Cab:
Exterior width | 4x2 | 4x4 |
---|---|---|
Overall width - excl. door mirrors (mm) | 1800 |
Crew Cab miscellaneous dimensions
Miscellaneous dimensions | 4x2 | 4x4 |
---|---|---|
Front overhang (mm) | 770 | |
Rear overhang (mm) | 1210 | |
Ground clearance - minimum (mm) | 225 |
Interior dimensions
1st row dimensions | Crew Cab |
---|---|
Head room | 1005 |
Shoulder room | 1450 |
Hip room | |
Leg room | 1085 |
2nd row dimensions | Crew Cab |
Head room | |
Shoulder room | |
Hip room | |
Leg room | 890 |
Turning circle of the D-Max:
Turning circle: | Kerb-to-kerb | Wall-to-wall |
---|---|---|
Turning circle diameter between kerbs (m) | 12.2 |
