RAM 700 - Short Cab Dimensions (1996-)

order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons

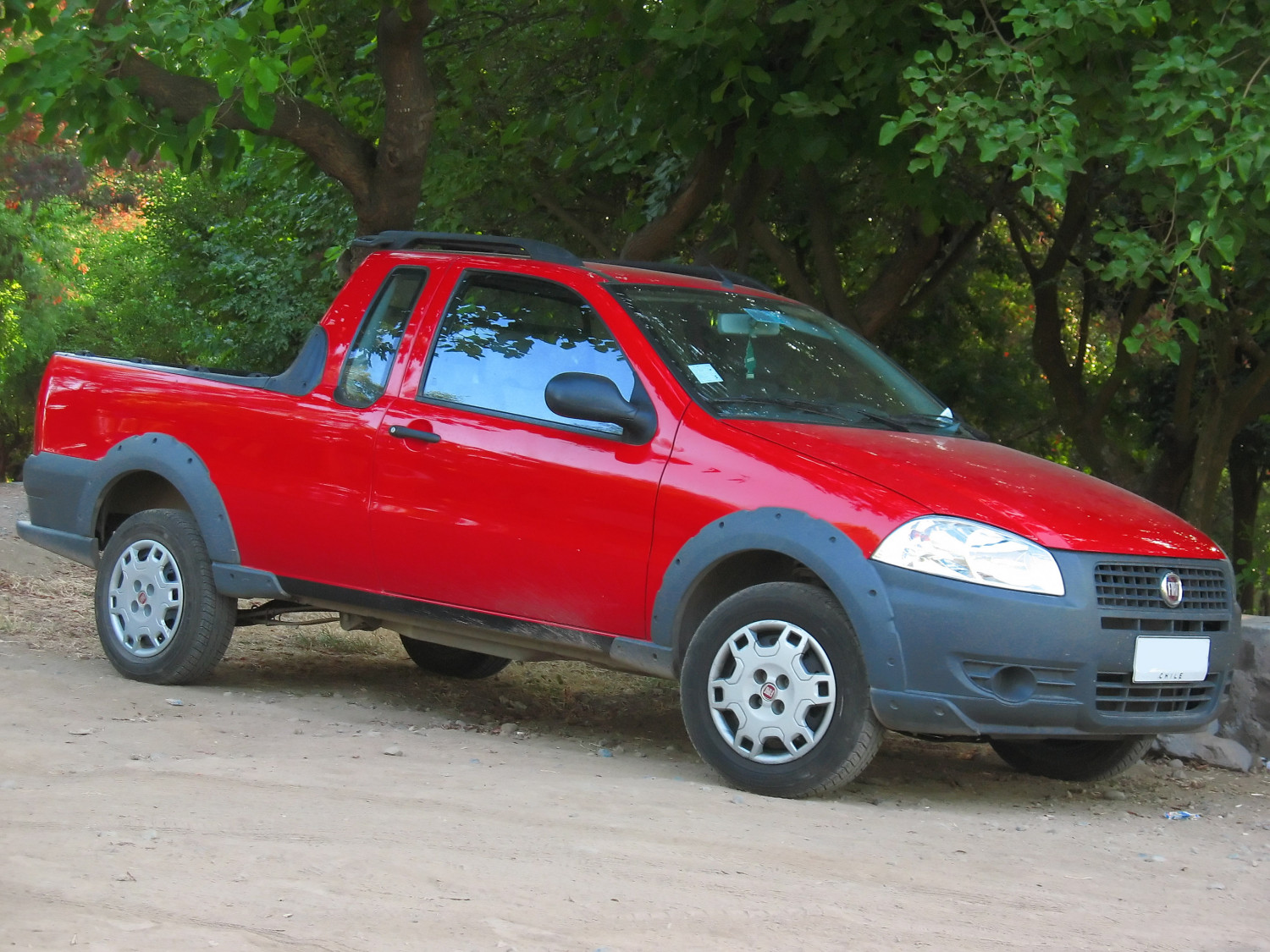

This is a picture of a Fiat Strada 1 Working, which is the same model as the RAM 700 1 Working. We where unable to find a picture of a Short Cab model, this is a picture of a Extended Cab.

On this page you'll find the exact dimensions for the RAM 700 Short Cab Working generation 1, made from 1996 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 1996 - present Generation: 1 Type of van: pickup Model variant: Working Body style: Short Cab Also known as: Fiat Strada

Dimensions in tables

700 truck bed dimensions (Short Cab)

Truck bed dimensions	Short Cab
Volume (cu. ft.)
Length at floor	1653
Inside height	513
Width at wheelhouse	1070
Maximum width at floor	1300

Wheelbase of the 700:

Wheelbase	Length (inch)
Wheelbase (mm)	2718

Exterior dimensions of the 700 Short Cab:

Dimension	4x2	4x4
Overall length (mm)	4335
Overall height (mm)	1578

Exterior width of the Short Cab:

Exterior width	4x2	4x4
Overall width - excluding mirrors (mm)	1670

Short Cab miscellaneous dimensions

Miscellaneous dimensions	4x2	4x4
Overhang - Front (mm)	789
Overhang - Rear (mm)	901

Turning circle of the 700:

Turning circle:	Kerb-to-kerb	Wall-to-wall
Turning circle (m)	10.7

Did you find the answer to your specific question?
👍 0 👎 0
