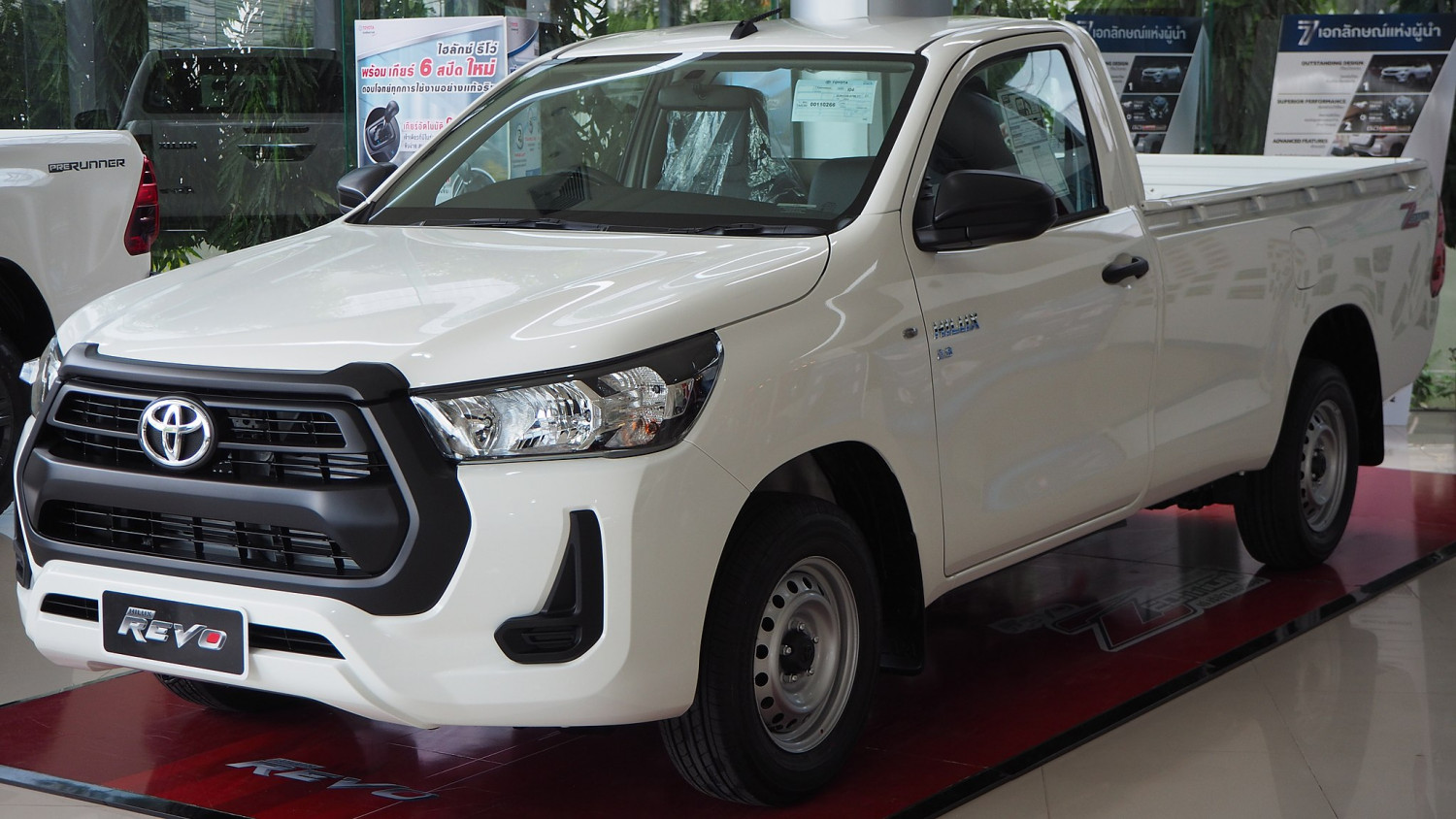

Toyota HiLux - Single Cab Dimensions (2015-)
On this page you'll find the exact dimensions for the Toyota HiLux Single Cab Base generation 8, made from 2015 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2015 - present Generation: 8 Type of van: pickup Model variant: Base Body style: Single Cab Also known as: TruckMasters OX AN120 AN130Dimensions in tables
HiLux truck bed dimensions (Single Cab)
| Truck bed dimensions | Single Cab |
|---|---|
| Volume (cu. ft.) | |
| Length at floor | 2315 |
| Inside height | 480 |
| Width at wheelhouse | |
| Maximum width at floor | 1645 |
Wheelbase of the HiLux:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase (mm) | 3085 |
Exterior dimensions of the HiLux Single Cab:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Overall length (mm) | 5330 | 5330 |
| Overall height (mm) | 1795 | 1795 |
Exterior width of the Single Cab:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Overall width (mm) | 1800 | 1800 |
Single Cab miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Front overhang (mm) | 1000 | 1000 |
| Rear overhang (mm) | 1250 | 1250 |
| Min. running ground clearance (mm) | 277 | 277 |
Interior dimensions
| 1st row dimensions | Single Cab |
|---|---|
| Head room | 997 |
| Shoulder room | |
| Hip room | |
| Leg room |
Turning circle of the HiLux:
| Turning circle: | Kerb-to-kerb | Wall-to-wall |
|---|---|---|
| Min. turning circle tyre (m) | 12.8 | |
| Min. turning circle body (m) | 13.4 |
