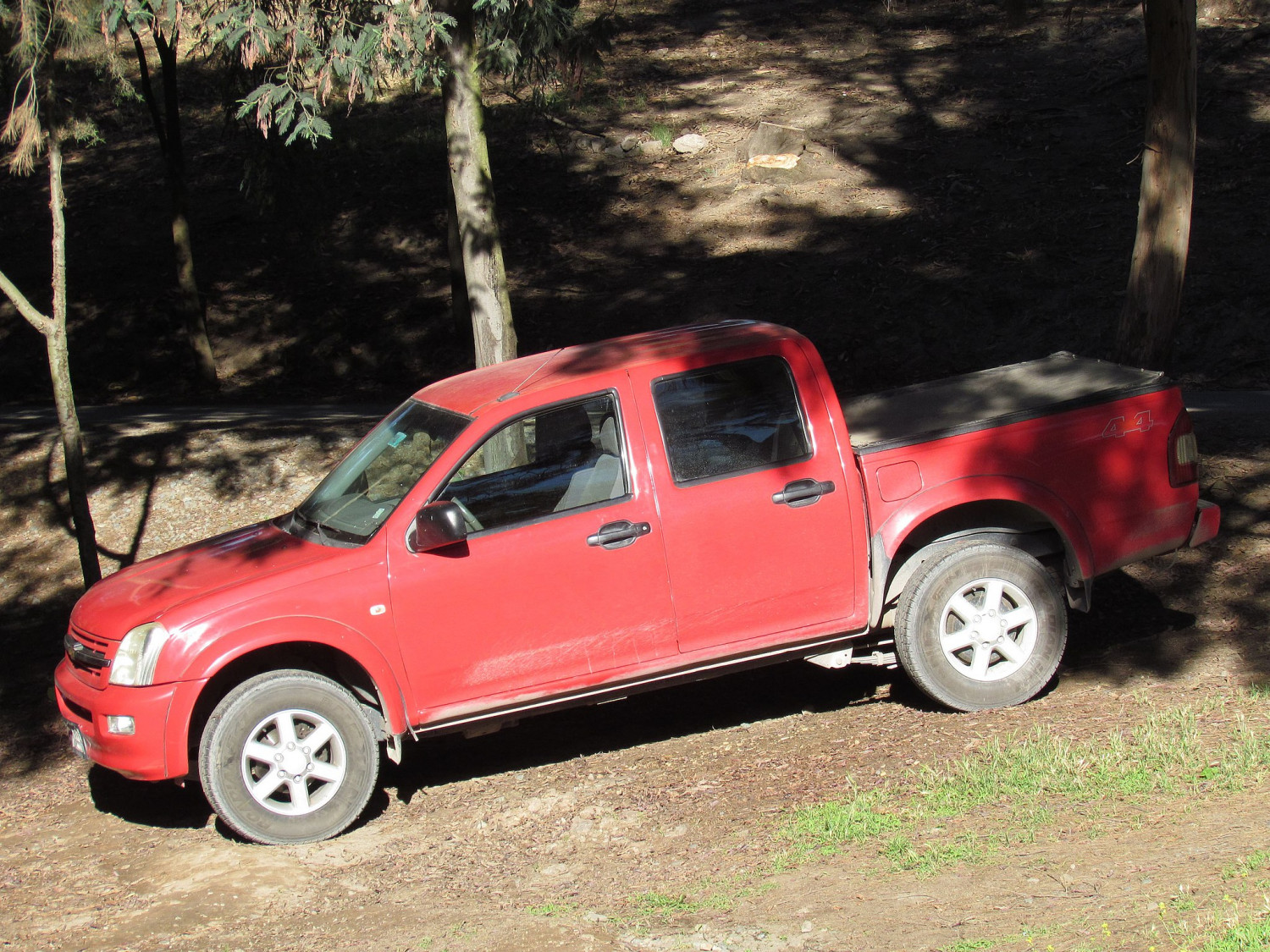

order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons
Chevrolet D-Max - Crew Cab Dimensions (2002-2012)
On this page you'll find the exact dimensions for the Chevrolet D-Max Crew Cab SX, LS, LS-M, LS-U generation 1, made from 2002 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2002 - present Generation: 1 Type of van: pickup Model variant: SX LS LS-M LS-U Body style: Crew Cab Also known as: Isuzu D-Max Chevrolet LUV D-Max Chevrolet T-Series Holden Rodeo Isuzu KB Isuzu LB Isuzu Rodeo Zamyad Padra Isuzu DvoDimensions in tables
D-Max truck bed dimensions (Crew Cab)
| Truck bed dimensions | Crew Cab - LS-M |
|---|---|
| Volume (cu. ft.) | |
| Length at floor | 1380 |
| Inside height | 480 |
| Width at wheelhouse | 1085 |
| Maximum width at floor | 1530 |
Wheelbase of the D-Max:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase (mm) | 3050 |
Exterior dimensions of the D-Max Crew Cab:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Overall length (mm) | 5030 | |
| Overall height (mm) | 1750 |
Exterior width of the Crew Cab:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Overall width - excl. door mirrors (mm) | 1800 |
Crew Cab miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Front overhang (mm) | 770 | |
| Rear overhang (mm) | 1210 | |
| Ground clearance - minimum (mm) | 225 |
Interior dimensions
| 1st row dimensions | Crew Cab |
|---|---|
| Head room | 1005 |
| Shoulder room | 1450 |
| Hip room | |
| Leg room | 1085 |
| 2nd row dimensions | Crew Cab |
| Head room | |
| Shoulder room | |
| Hip room | |
| Leg room | 890 |
Turning circle of the D-Max:
| Turning circle: | Kerb-to-kerb | Wall-to-wall |
|---|---|---|
| Turning circle diameter between kerbs (m) | 12.2 |
