Chevrolet D-Max - Crew Cab Dimensions (2002-2012)

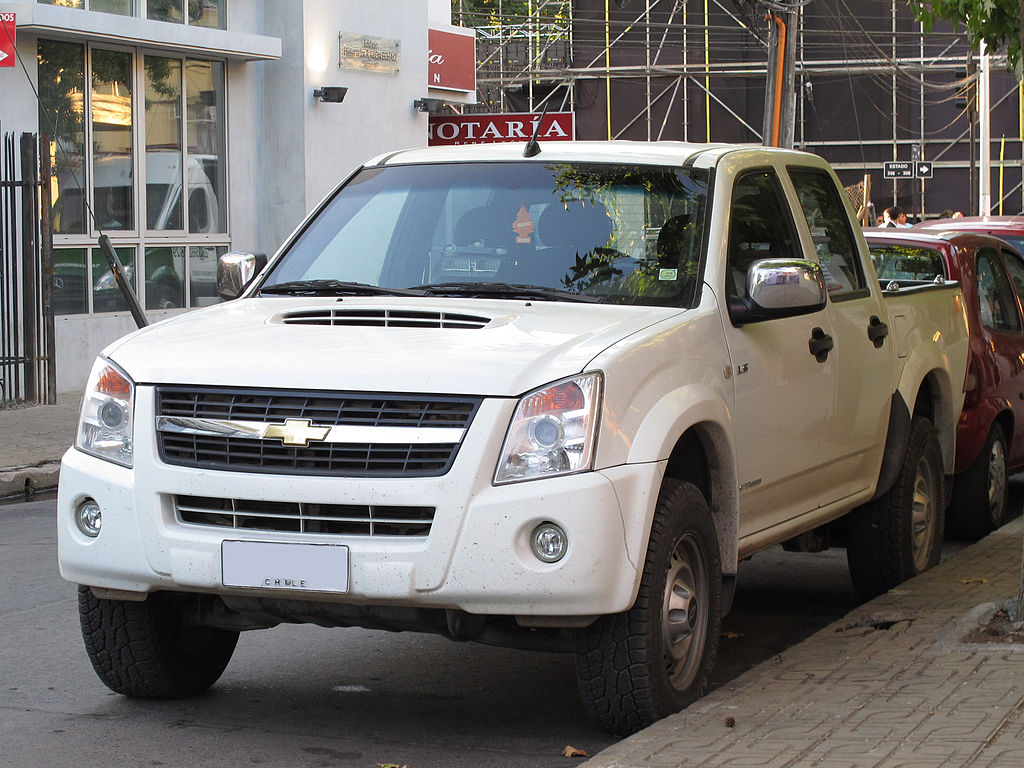

order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons

On this page you'll find the exact dimensions for the Chevrolet D-Max Crew Cab SX, LS, LS-M, LS-U generation 1, made from 2002 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2002 - present Generation: 1 Type of van: pickup Model variant: SX LS LS-M LS-U Body style: Crew Cab Also known as: Isuzu D-Max Chevrolet LUV D-Max Chevrolet T-Series Holden Rodeo Isuzu KB Isuzu LB Isuzu Rodeo Zamyad Padra Isuzu Dvo

Dimensions in tables

D-Max truck bed dimensions (Crew Cab)

Truck bed dimensions Crew Cab - LS-U
Volume (cu. ft.)
Length at floor 1380
Inside height 480
Width at wheelhouse 1085
Maximum width at floor 1530

Wheelbase of the D-Max:

Wheelbase Length (inch)
Wheelbase (mm) 3050

Exterior dimensions of the D-Max Crew Cab:

Dimension 4x2 4x4
Overall length (mm) 5030
Overall height (mm) 1735

Exterior width of the Crew Cab:

Exterior width 4x2 4x4
Overall width - excl. door mirrors (mm) 1800

Crew Cab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Front overhang (mm) 770
Rear overhang (mm) 1210
Ground clearance - minimum (mm) 225

Interior dimensions

1st row dimensions Crew Cab
Head room 1005
Shoulder room 1450
Hip room
Leg room 1085
2nd row dimensions Crew Cab
Head room
Shoulder room
Hip room
Leg room 890

Turning circle of the D-Max:

Turning circle: Kerb-to-kerb Wall-to-wall
Turning circle diameter between kerbs (m) 12.2

Did you find the answer to your specific question?
