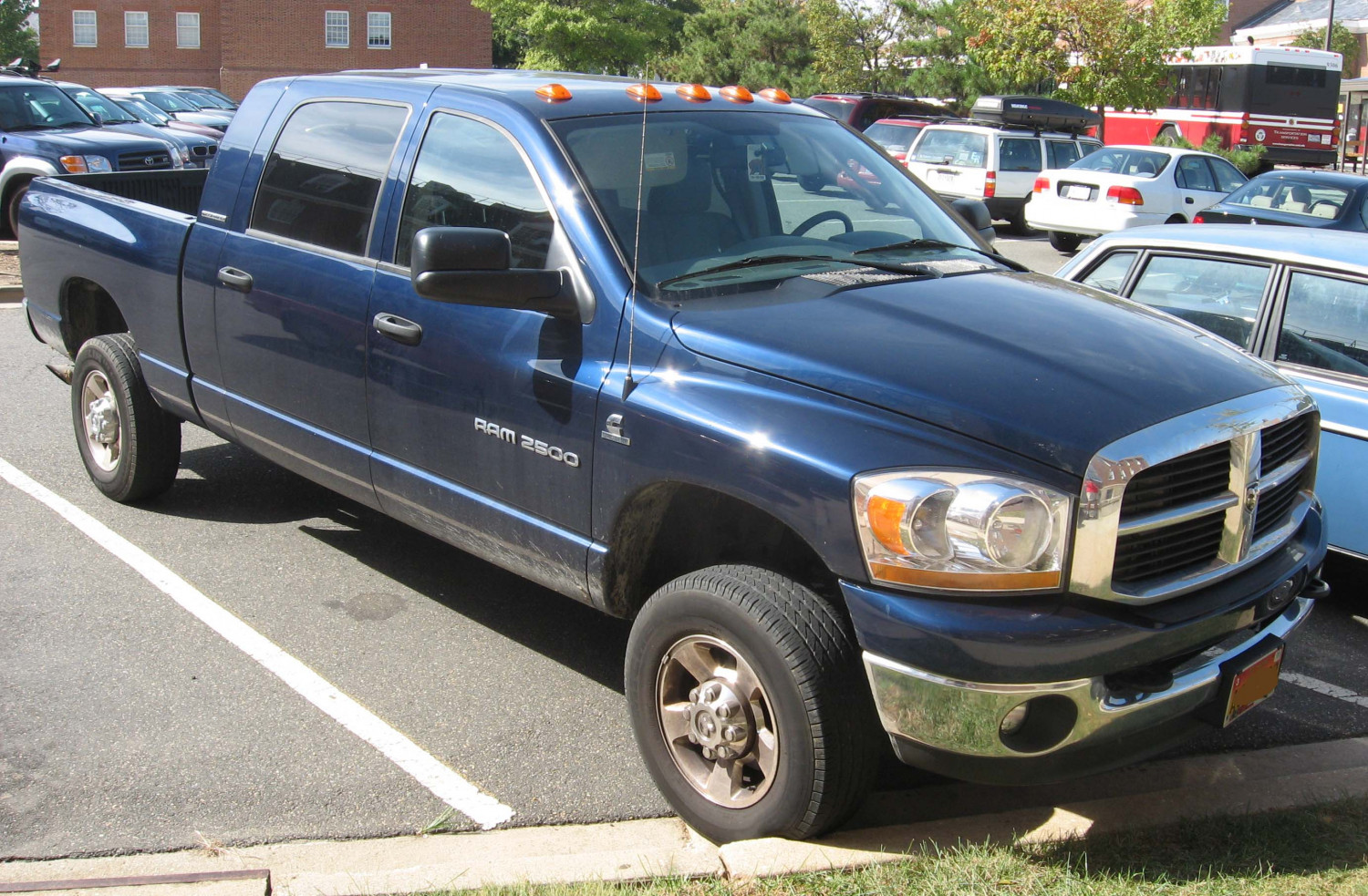

Dodge RAM - Mega Cab Dimensions (2002-2009)
On this page you'll find the exact dimensions for the Dodge RAM Mega Cab 1500 generation 3, made from 2002 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2002 - present Generation: 3 Type of van: pickup Model variant: 1500 Body style: Mega Cab Also known as: Sterling BulletDimensions in tables
RAM truck bed dimensions (Mega Cab)
Truck bed dimensions | Short Box (6'4") |
---|---|
Volume (cu. ft.) | 57.5 |
Length at floor | 76.3 |
Inside height | 43.9 |
Width at wheelhouse | 51 |
Maximum width at floor | 66.4 |
Wheelbase of the RAM:
Wheelbase | Length (inch) |
---|---|
Short Box (6'4") | 160.5 |
Exterior dimensions of the RAM Mega Cab:
Dimension | 4x2 | 4x4 |
---|---|---|
Overall length -Short Box (6'4") | 247.9 | 247.9 |
Height - Short Box (6'4") | 75 | 79.1 |
Exterior width of the Mega Cab:
Exterior width | 4x2 | 4x4 |
---|---|---|
Width (mirrors folded) | 79.6 | 79.6 |
Mega Cab miscellaneous dimensions
Miscellaneous dimensions | 4x2 | 4x4 |
---|---|---|
Overhang - Front | 39.3 | 39.3 |
Overhang - Rear | 47.9 | 47.9 |
Ground to top of load floor - Short Box (6'4") | 33.2 | 33.2 |
Min. ground clearance - Short Box(6'4") | 7.4 | 7.4 |
Interior dimensions
1st row dimensions | Mega Cab |
---|---|
Head room | 40.8 |
Shoulder room | 67 |
Hip room | 64.9 |
Leg room | 41 |
2nd row dimensions | Mega Cab |
Head room | 40.5 |
Shoulder room | 66.5 |
Hip room | 64.4 |
Leg room | 44.2 |
Turning circle of the RAM:
Turning circle: | Kerb-to-kerb | Wall-to-wall |
---|---|---|
Short Box (6'4") | 44.1 |
