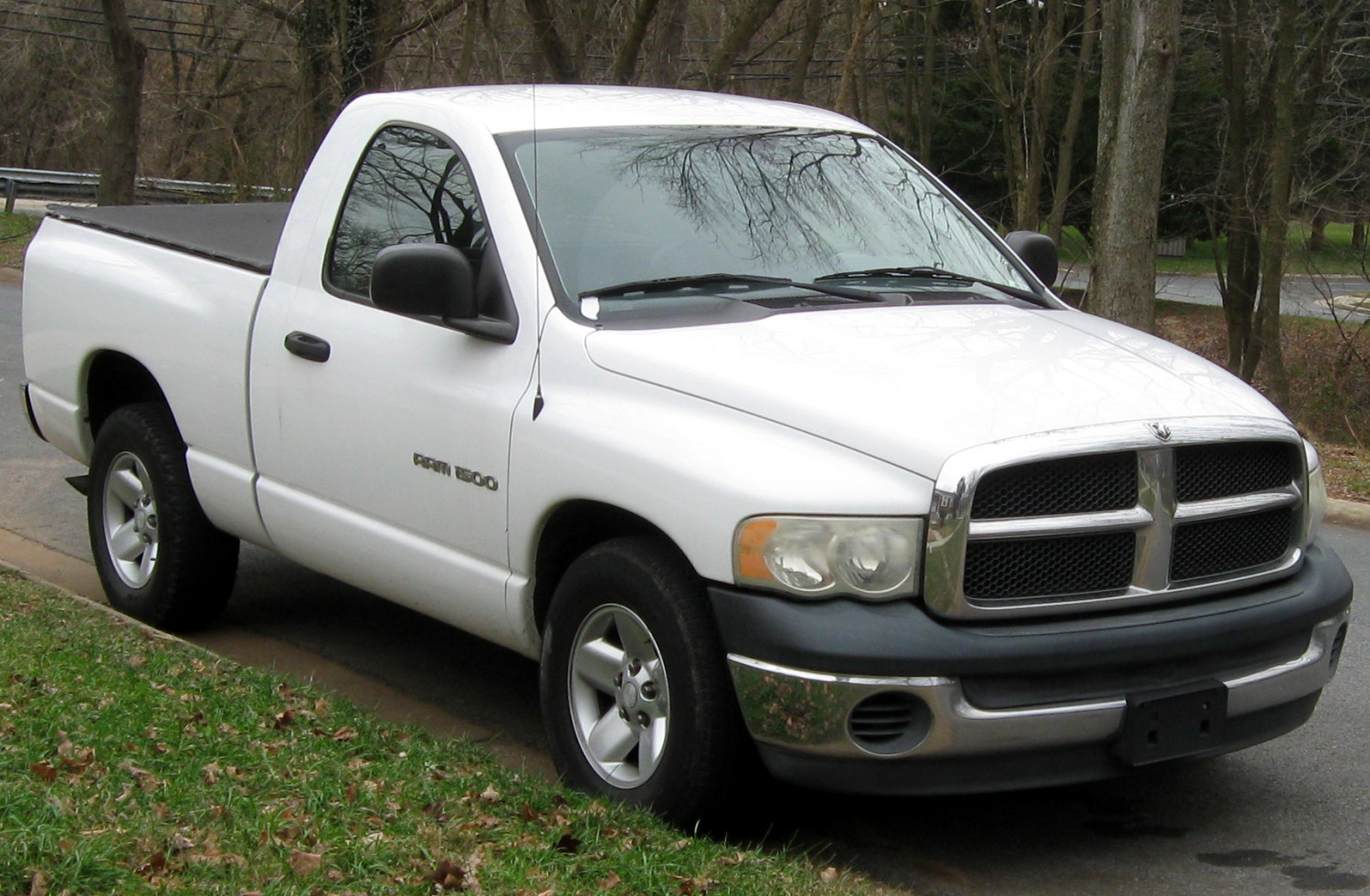

On this page you'll find the exact dimensions for the Dodge RAM Regular Cab 1500 generation 3, made from 2002 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

---

Dimensions in tables

RAM truck bed dimensions (Regular Cab)

Truck bed dimensions	Short Box (6'4")	Long Box (8')
Volume (cu. ft.)	57.5	74.9
Length at floor	76.3	98.3
Inside height	43.9	43.9
Width at wheelhouse	51	51
Maximum width at floor	66.4	66.4

Wheelbase of the RAM:

Wheelbase	Length (inch)
Short Box (6'4")	120.5
Long Box (8'	140.5

Exterior dimensions of the RAM Regular Cab:

Dimension	4x2	4x4
Overall length - Short Box (6'4")	207.7	207.7
Overall length - Long Box (8'	229.7	229.7
Height - Short Box (6'4")	73.8	75.5
Height - Long Box (8'	73.6	78.7

Exterior width of the Regular Cab:

Exterior width	4x2	4x4
Width (mirrors folded)	79.6	79.6

Regular Cab miscellaneous dimensions

Miscellaneous dimensions	4x2	4x4
Overhang - Front	39.3	39.3
Overhang - Rear	47.9	47.9
Ground to top of load floor - Short Box (6'4")	32.9	32.9
Min. ground clearance - Short Box(6'4")	7.4	7.4

Interior dimensions

1st row dimensions	Regular Cab
Head room	40.8
Shoulder room	67
Hip room	65
Leg room	41

Turning circle of the RAM:

Turning circle:	Kerb-to-kerb	Wall-to-wall
Short Box (6'4")	41.5
Long Box (8'	41.5
