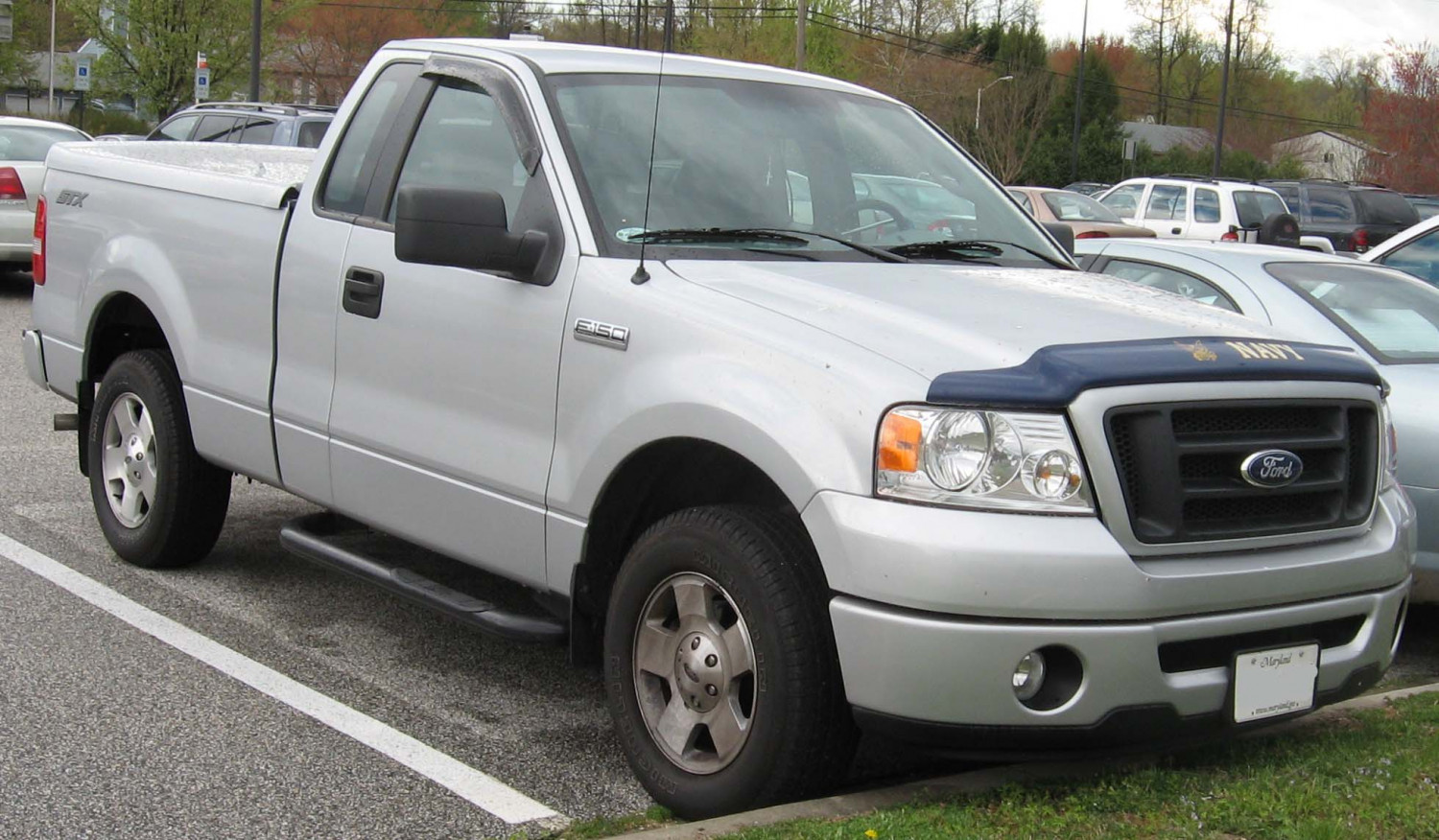

Example of a F150:
IFCAR , Public domain, via Wikimedia Commons
Are these dimensions right for you?
Production years:
2004 -
2008
Generation:
11
Type of van:
pickup
Body styles:
Regular Cab
Also called:
Ford Lobo
Dimensions in tables
Jump to dimension:
truck bed
outside
inside
wheelbase
clearance
load height
Truck bed dimensions
Styleside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
55.5
65.5
81.3
Length at floor
67
78.8
97.4
Inside height
22.3
22.3
22.3
Width at wheelhouse
50
50
50
Maximum width at floor
65.2
65.2
65.2
Flareside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
59.1
Length at floor
78.8
Inside height
Width at wheelhouse
50
Maximum width at floor
59.3
Wheelbase of the F150:
Wheelbase length:
4x2
4x4
Medium (6.5')
126
126
Long (8')
144.5
144.5
Turning circle of the F150:
Turning circle:
Kerb-to-kerb
Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')
Exterior length of the F150:
Exterior length
4x2
4x4
Medium wheelbase (6.5')
211.2
211.2
Long wheelbase (8')
229.8
229.8
Flareside (MWB - 6.5')
211.2
211.2
Exterior height of the F150:
Exterior height
4x2
4x4
Medium wheelbase (6.5')
73.7
75.6
Long wheelbase (8')
73.8
75.6
Exterior width of the F150:
Exterior width
4x2
4x4
Width (excluding mirrors)
78.9
78.9
Width (including standard mirrors)
Width (standard mirrors folded)
Width (including trailer tow mirrors)
Miscellaneous dimensions
Exterior dimensions
4x2
4x4
Overhang - Front
36.9
36.9
Overhang - Rear
48.4
48.4
Load floor height - 6.5'
33.1
35.6
Load floor height - 8'
33.5
35.9
Ground clearance - 5.5'
Ground clearance - 6.5'
Ground clearance - 8'
Cab length
124.9
124.9
Interior dimensions
1st row
Styleside
Flareside
Head room
40.9
Shoulder room
66.5
Hip room
65.4
Leg room
41.3
2nd row
Styleside
Flareside
Head room
Shoulder room
Hip room
Leg room
