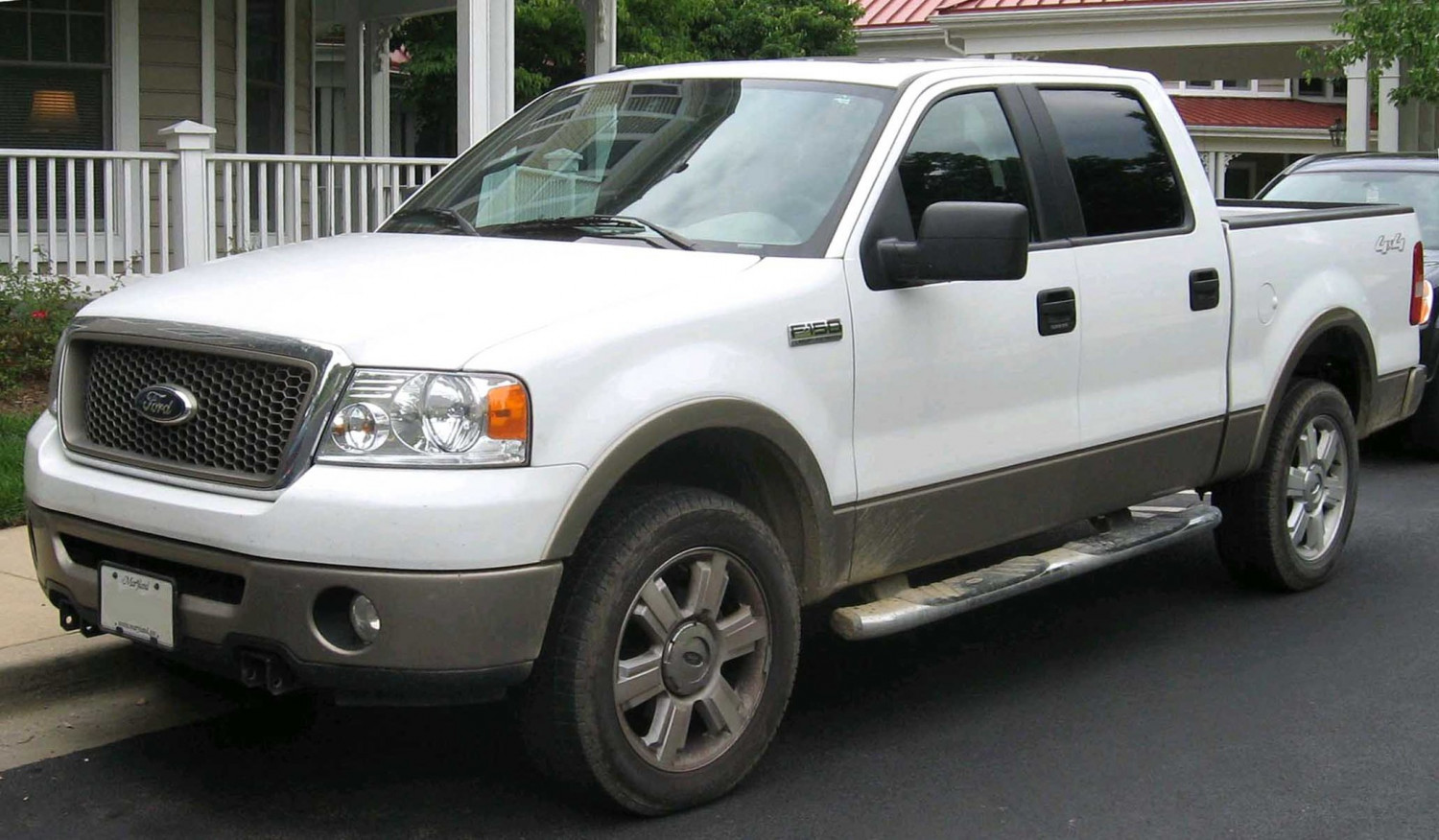

Example of a F-150:

---

Dimensions in tables

Jump to dimension: truck bed outside inside wheelbase clearance load height

Truck bed dimensions

Styleside truck bed dimensions	SWB	MWB	LWB
Volume (cu. ft.)	55.5	65.5	81.3
Length at floor	67	78.8	97.4
Inside height	22.3	22.3	22.3
Width at wheelhouse	50	50	50
Maximum width at floor	65.2	65.2	65.2

Flareside truck bed dimensions	SWB	MWB	LWB
Volume (cu. ft.)		59.1
Length at floor		78.8
Inside height
Width at wheelhouse		50
Maximum width at floor		59.3

Wheelbase of the F-150:

Wheelbase length:	4x2	4x4
Short (5.5')	138.5	138.5
Medium (6.5')
Long (8')

Turning circle of the F-150:

Turning circle:	Kerb-to-kerb	Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')

Exterior length of the F-150:

Exterior length	4x2	4x4
Short wheelbase (5.5')	223.8	223.8
Medium wheelbase (6.5')
Long wheelbase (8')
Flareside (SWB - 5.5')

Exterior height of the F-150:

Exterior height	4x2	4x4
Short wheelbase (5.5')	73.5	76
Medium wheelbase (6.5')
Long wheelbase (8')

Exterior width of the F-150:

Exterior width	4x2	4x4
Width (excluding mirrors)	78.9	78.9
Width (including standard mirrors)
Width (standard mirrors folded)
Width (including trailer tow mirrors)

Miscellaneous dimensions

Exterior dimensions	4x2	4x4
Overhang - Front	36.9	36.9
Overhang - Rear
Load floor height - 5.5'	32.4	34.8
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'
Ground clearance - 6.5'
Ground clearance - 8'
Cab length	149.3	149.3

Interior dimensions

1st row	Styleside	Flareside
Head room	40.1
Shoulder room	65.8
Hip room	63.8
Leg room	41.3

2nd row	Styleside	Flareside
Head room
Shoulder room
Hip room
Leg room
