Dimensions of the Ford F150 (2021-on) - Regular Cab

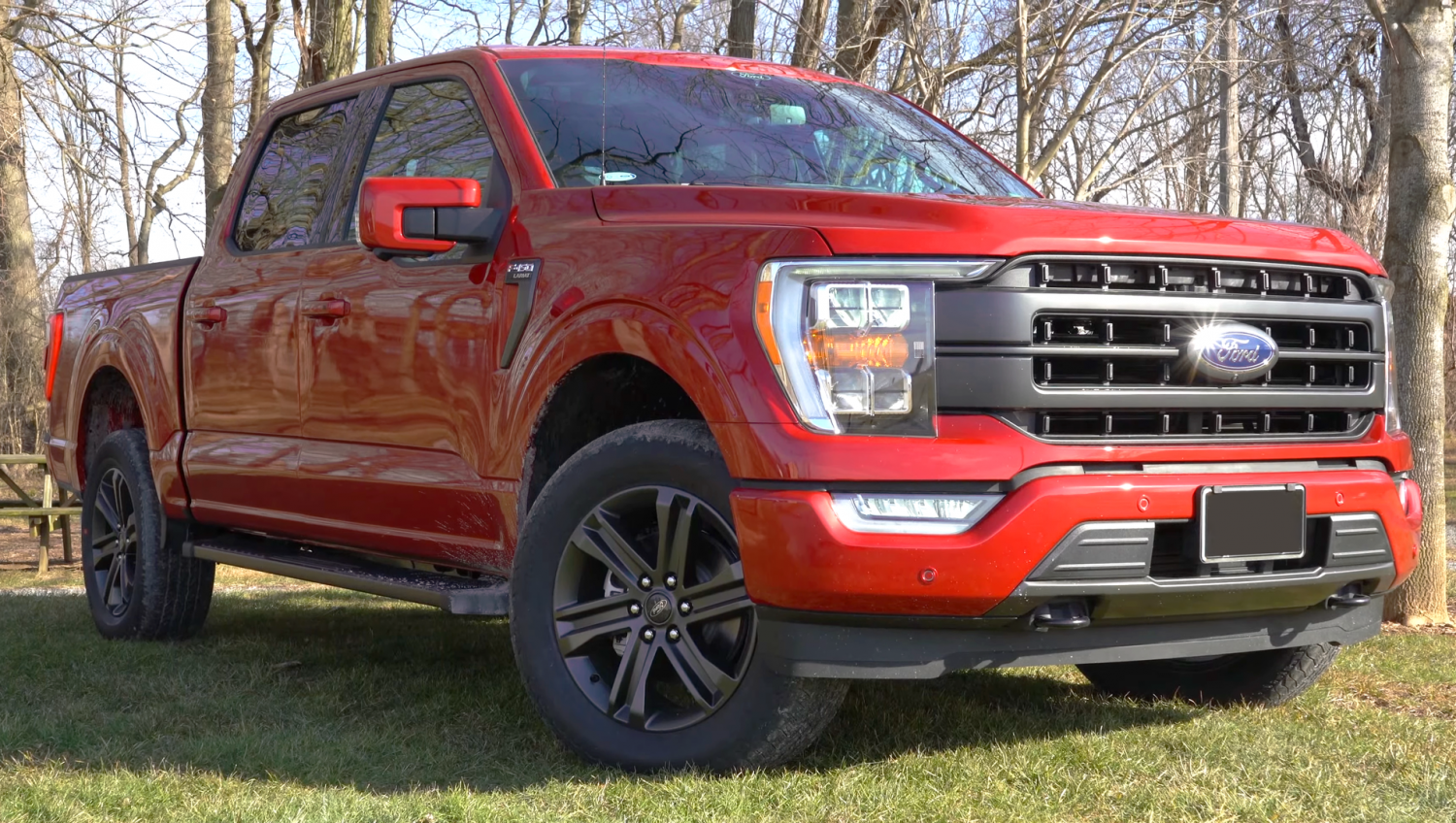

Example of a F-150:

Ford F150 14th Gen SuperCrew - By Gold Pony, CC BY 3.0

Are these dimensions right for you?

Production years: 2021 - present Generation: 14 Type of van: pickup Body styles: Regular Cab Also called: Ford Lobo

Dimensions in tables

Truck bed dimensions

Styleside truck bed dimensions SWB MWB LWB
Volume (cu. ft.) 52.8 62.3 77.4
Length at floor 67.1 78.9 97.6
Inside height 77.4 77.4 77.4
Width at wheelhouse 51.1 51.1 51.1
Maximum width at floor 65.2 65.2 65.2
Flareside truck bed dimensions SWB MWB LWB
Volume (cu. ft.)
Length at floor
Inside height
Width at wheelhouse
Maximum width at floor

Wheelbase of the F-150:

Wheelbase length: 4x2 4x4
Medium (6.5') 122.8 122.8
Long (8') 141.5 141.5

Turning circle of the F-150:

Turning circle: Kerb-to-kerb Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')

Exterior length of the F-150:

Exterior length 4x2 4x4
Medium wheelbase (6.5') 209.1 209.1
Long wheelbase (8') 227.7 227.7

Exterior height of the F-150:

Exterior height 4x2 4x4
Medium wheelbase (6.5') 75.6 77
Long wheelbase (8') 75.2 77

Exterior width of the F-150:

Exterior width 4x2 4x4
Width (excluding mirrors) 79.9 79.9
Width (including standard mirrors) 95.7 95.7
Width (standard mirrors folded) 83.6 83.6
Width (including trailer tow mirrors) 105.9 105.9

Miscellaneous dimensions

Exterior dimensions 4x2 4x4
Overhang - Front
Overhang - Rear
Load floor height - 5.5'
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'
Ground clearance - 6.5' 8.7 9.4
Ground clearance - 8' 8.3 9.4
Cab length

Interior dimensions

1st row Styleside Flareside
Head room 40.8
Shoulder room 66.7
Hip room 62.5
Leg room 43.9
2nd row Styleside Flareside
Head room
Shoulder room
Hip room
Leg room
