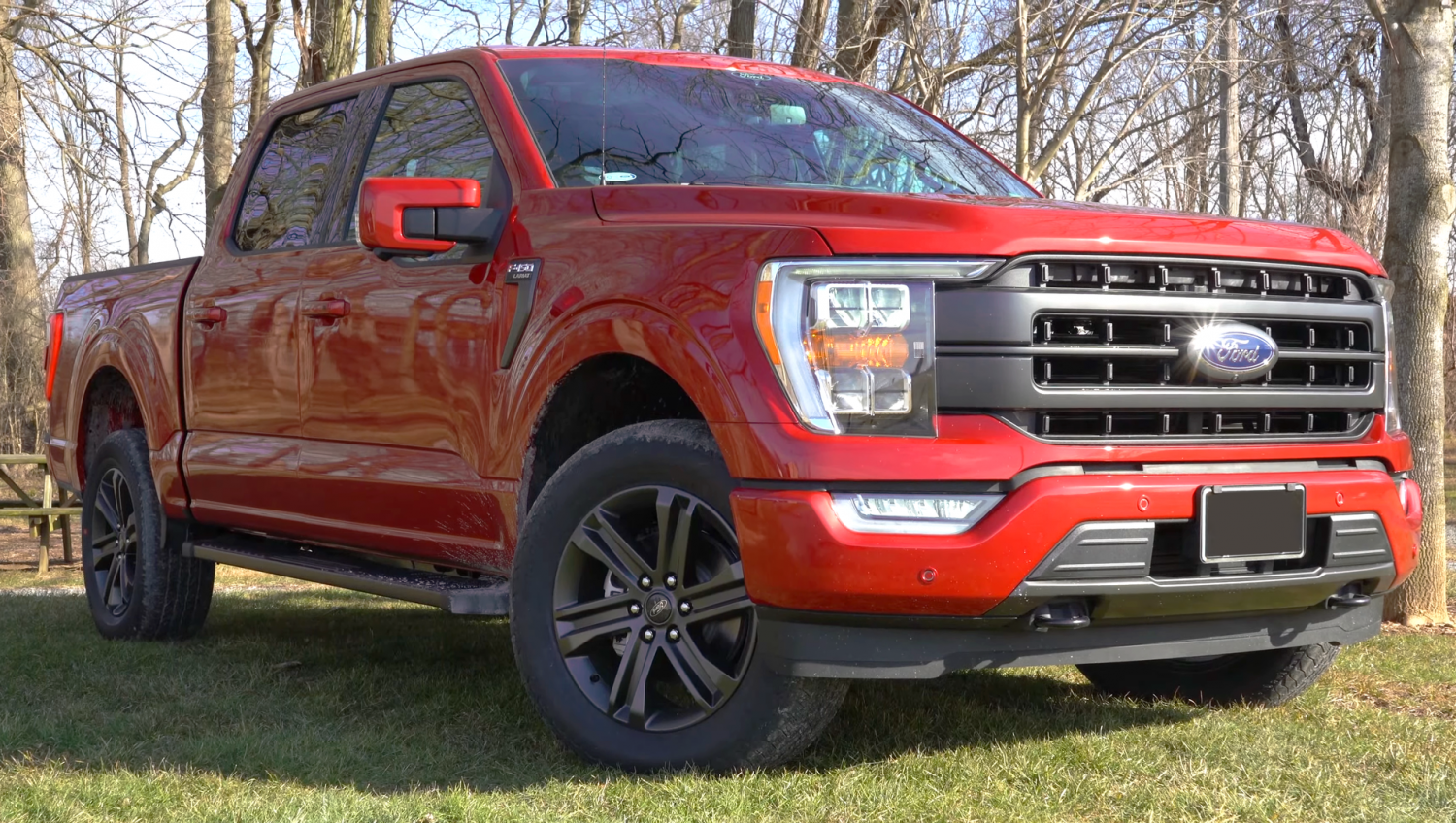

Example of a F-150:
Ford F150 14th Gen SuperCrew - By Gold Pony , CC BY 3.0
Are these dimensions right for you?
Production years:
2021 -
present
Generation:
14
Type of van:
pickup
Body styles:
SuperCab
Also called:
Ford Lobo
Dimensions in tables
Jump to dimension:
truck bed
outside
inside
wheelbase
clearance
load height
Truck bed dimensions
Styleside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
52.8
62.3
77.4
Length at floor
67.1
78.9
97.6
Inside height
77.4
77.4
77.4
Width at wheelhouse
51.1
51.1
51.1
Maximum width at floor
65.2
65.2
65.2
Flareside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
Length at floor
Inside height
Width at wheelhouse
Maximum width at floor
Wheelbase of the F-150:
Wheelbase length:
4x2
4x4
Medium (6.5')
145.4
145.4
Long (8')
164.1
164.1
Exterior length of the F-150:
Exterior length
4x2
4x4
Medium wheelbase (6.5')
231.7
231.7
Long wheelbase (8')
250.3
250.3
Exterior height of the F-150:
Exterior height
4x2
4x4
Medium wheelbase (6.5')
77.2
77.2
Long wheelbase (8')
75.6
77.1
Exterior width of the F-150:
Exterior width
4x2
4x4
Width (excluding mirrors)
79.9
79.9
Width (including standard mirrors)
95.7
95.7
Width (standard mirrors folded)
83.6
83.6
Width (including trailer tow mirrors)
105.9
105.9
Miscellaneous dimensions
Exterior dimensions
4x2
4x4
Overhang - Front
Overhang - Rear
Load floor height - 5.5'
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'
Ground clearance - 6.5'
8.4
9.4
Ground clearance - 8'
8.2
8.7
Cab length
Interior dimensions
1st row
Styleside
Flareside
Head room
40.8
Shoulder room
66.7
Hip room
62.5
Leg room
43.9
2nd row
Styleside
Flareside
Head room
Shoulder room
Hip room
Leg room
