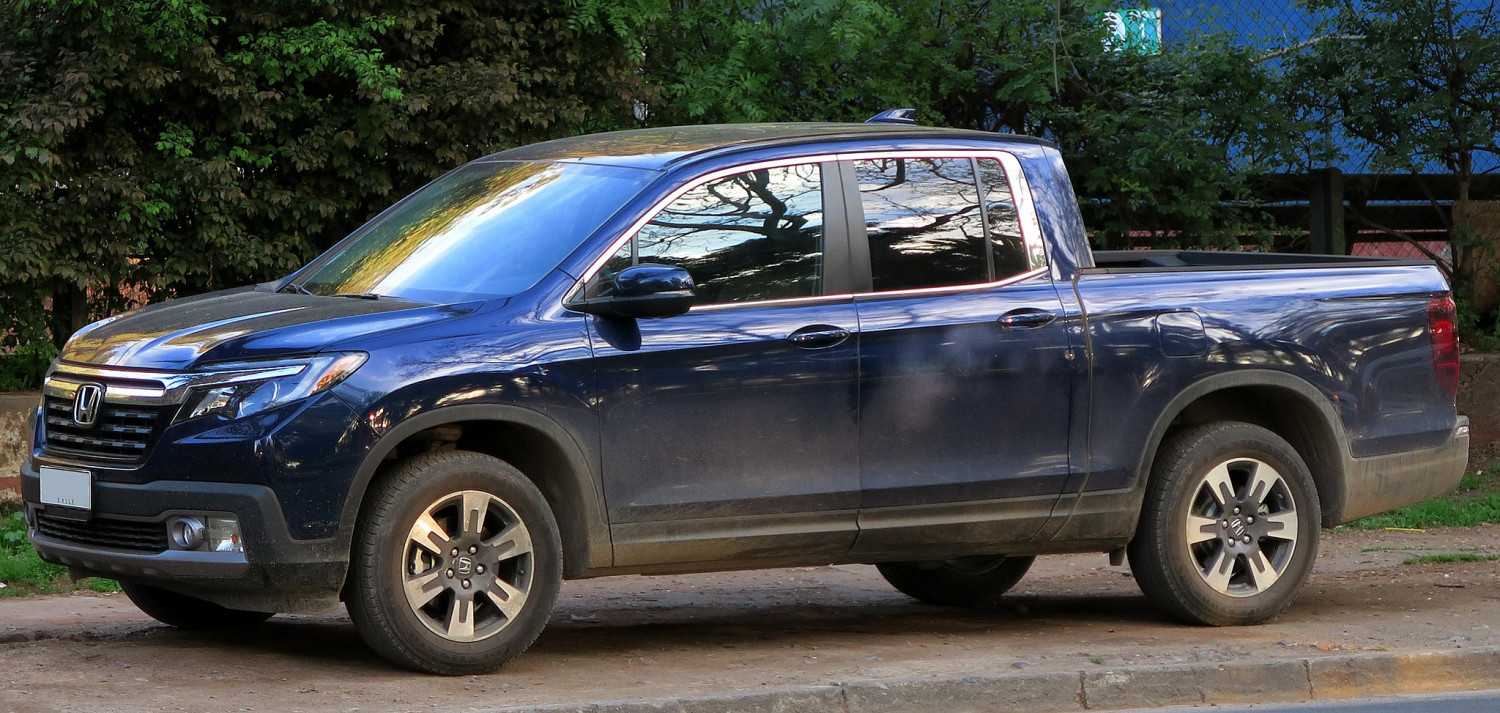

RL GNZLZ from Chile, CC BY-SA 2.0, via Wikimedia Commons
Honda Ridgeline - RTL Dimensions (2017-)
On this page you'll find the exact dimensions for the Honda Ridgeline RTL Base generation 2, made from 2017 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2017 - present Generation: 2 Type of van: pickup Model variant: Base Body style: RTL Also known as: YK2/3 Honda Pilot RidgelineDimensions in tables
Ridgeline truck bed dimensions (RTL)
| Truck bed dimensions | RTL |
|---|---|
| Volume (cu. ft.) | 33.9 |
| Length at floor | 64 |
| Inside height | |
| Width at wheelhouse | 50 |
| Maximum width at floor | 60 |
Wheelbase of the Ridgeline:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase | 125.2 |
Exterior dimensions of the Ridgeline RTL:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Length | 210 | 210 |
| Height | 70.2 | 70.8 |
Exterior width of the RTL:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Width | 78.6 | 78.6 |
RTL miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Ground clearance | 7.28 | 7.87 |
Interior dimensions
| 1st row dimensions | RTL |
|---|---|
| Head room | 40.1 |
| Shoulder room | 62 |
| Hip room | 59.1 |
| Leg room | 40.9 |
| 2nd row dimensions | RTL |
| Head room | 38.8 |
| Shoulder room | 61.5 |
| Hip room | 56.6 |
| Leg room | 36.7 |
Turning circle of the Ridgeline:
| Turning circle: | Kerb-to-kerb | Wall-to-wall |
|---|---|---|
| Turning diameter | 44.4 |
