Honda Ridgeline - RTS Dimensions (2017-)

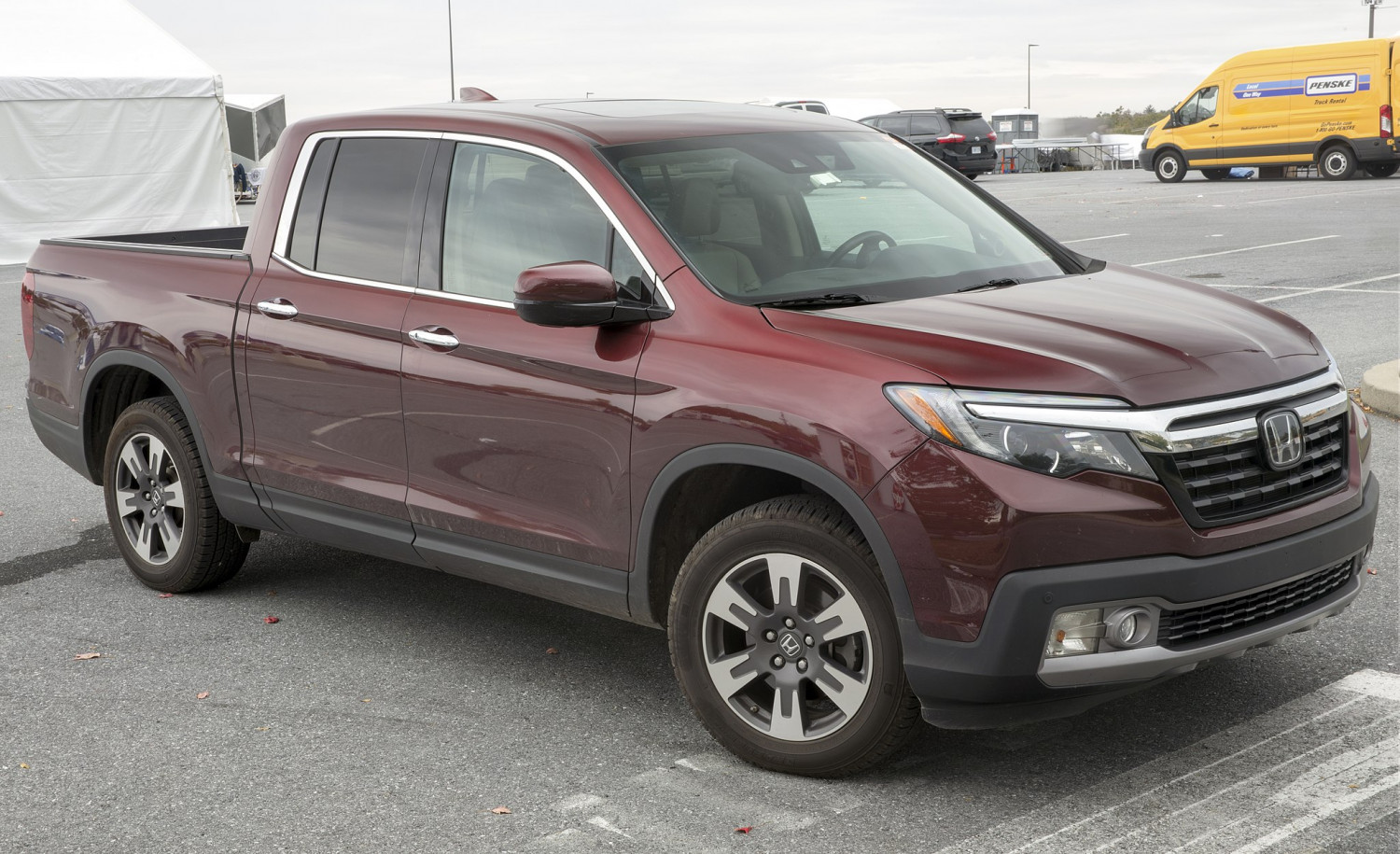

Mr.choppers, CC BY-SA 3.0, via Wikimedia Commons - We where unable to find a picture of the RTS, the model in the picture is a 2017 Honda Ridgeline RTL-E

On this page you'll find the exact dimensions for the Honda Ridgeline RTS Base generation 2, made from 2017 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2017 - present Generation: 2 Type of van: pickup Model variant: Base Body style: RTS Also known as: YK2/3 Honda Pilot Ridgeline

Dimensions in tables

Ridgeline truck bed dimensions (RTS)

Truck bed dimensions RTS
Volume (cu. ft.) 33.9
Length at floor 64
Inside height
Width at wheelhouse 50
Maximum width at floor 60

Wheelbase of the Ridgeline:

Wheelbase Length (inch)
Wheelbase 125.2

Exterior dimensions of the Ridgeline RTS:

Dimension 4x2 4x4
Length 210 210
Height 70.2 70.8

Exterior width of the RTS:

Exterior width 4x2 4x4
Width 78.6 78.6

RTS miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Ground clearance 7.28 7.87

Interior dimensions

1st row dimensions RTS
Head room 40.1
Shoulder room 62
Hip room 59.1
Leg room 40.9
2nd row dimensions RTS
Head room 38.8
Shoulder room 61.5
Hip room 56.6
Leg room 36.7

Turning circle of the Ridgeline:

Turning circle: Kerb-to-kerb Wall-to-wall
Turning diameter 44.4
