Mazda BT-50 - Single Cab Dimensions (2011-2020)

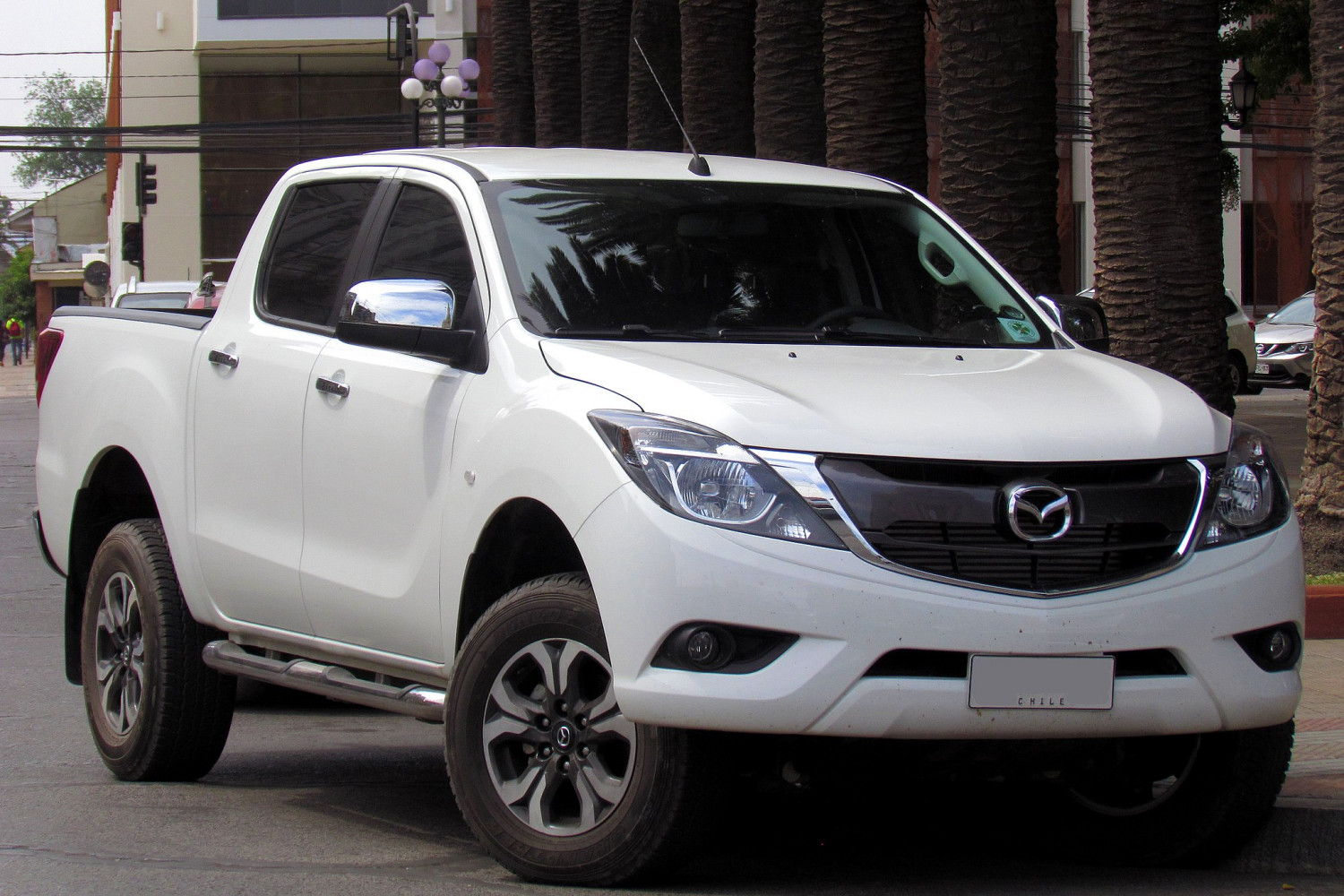

RL GNZLZ from Chile, CC BY-SA 2.0, via Wikimedia Commons
We where unable to find a picture of a Single Cab model, this is a picture of a Dual Cab BT-50

On this page you'll find the exact dimensions for the Mazda BT-50 Single Cab XT, XT Hi-Rider, XTR Hi-Rider generation 2, made from 2011 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2011 - present Generation: 2 Type of van: pickup Model variant: XT XT Hi-Rider XTR Hi-Rider Body style: Single Cab Also known as: Ford Ranger

Dimensions in tables

Wheelbase of the BT-50:

Wheelbase Length (inch)
Standard box 126.77

Exterior dimensions of the BT-50 Single Cab:

Dimension 4x2 4x4
Overall length 201.73
Overall height 67.04
Overall height 70.86

Exterior width of the Single Cab:

Exterior width 4x2 4x4
Overall width 72.83

Single Cab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Overhang - Front 36.18
Overhang - Rear 38.77
Ground clearance - laden 5.31
Ground clearance - laden 7.87
Ground clearance - unladen 7.91
Ground clearance - unladen 9.13

Turning circle of the BT-50:

Turning circle: Kerb-to-kerb Wall-to-wall
Standard box 38.711
Standard box 40.68
