RAM 3500 HD - Crew Cab Dimensions (2009-2019)

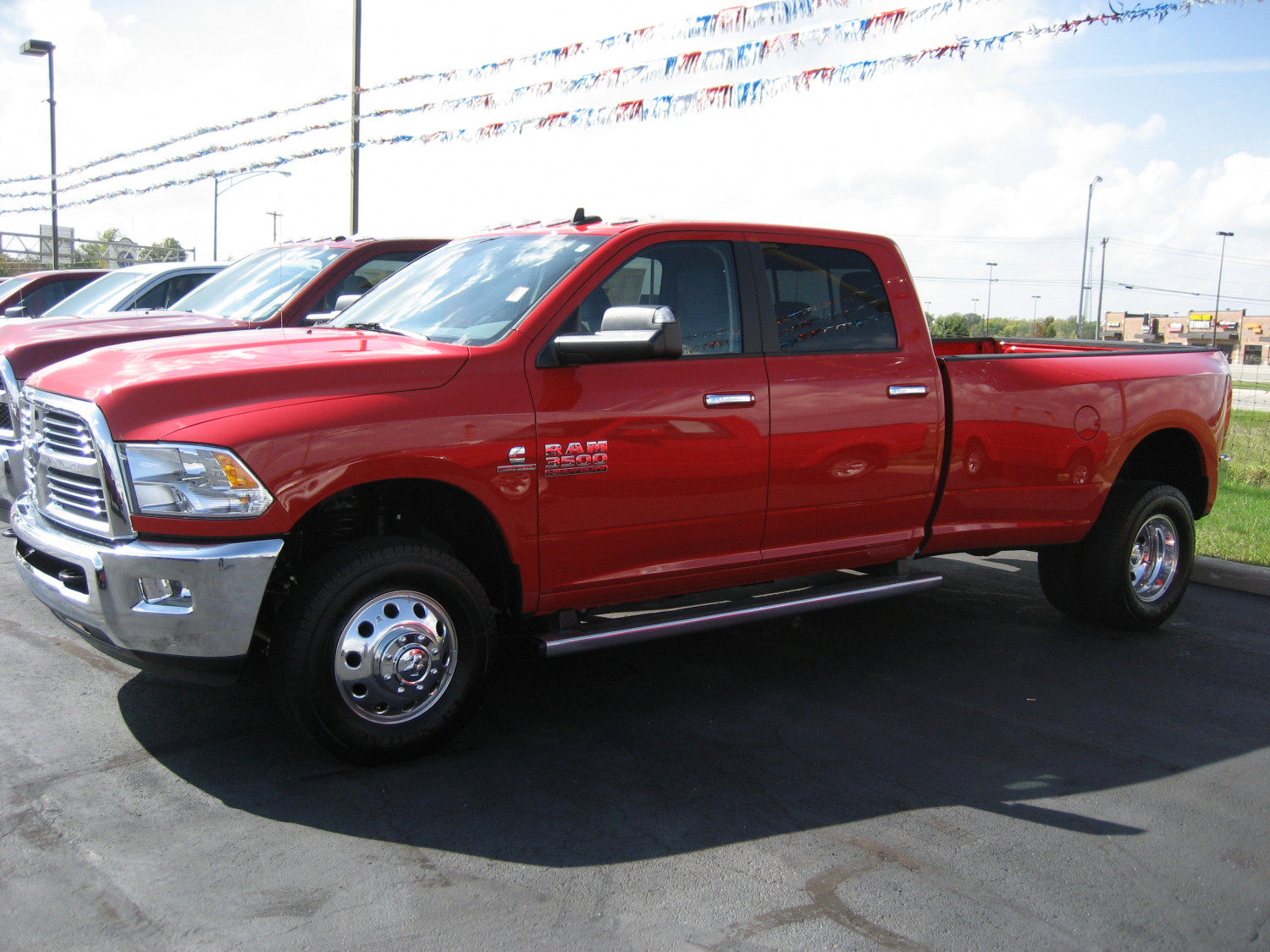

Dana60Cummins, CC BY-SA 3.0, via Wikimedia Commons

On this page you'll find the exact dimensions for the RAM 3500 HD Crew Cab 3500 HD generation 4, made from 2009 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2009 - present Generation: 4 Type of van: pickup Model variant: 3500 HD Body style: Crew Cab Also known as: Ram 1500 Ram 1500 Classic Ram 2500/3500 Ram 4000 Dodge Ram ASV Ram

Dimensions in tables

3500 HD truck bed dimensions (Crew Cab)

Truck bed dimensions Standard Box (6'4") Long Box (8')
Volume (cu. ft.)
Length at floor
Inside height
Width at wheelhouse 51 51
Maximum width at floor

Wheelbase of the 3500 HD:

Wheelbase Length (inch)
Standard Box (6'4") 149.1
Long Box (8') 169.1

Exterior dimensions of the 3500 HD Crew Cab:

Dimension 4x2 4x4
Overall length - Standard Box (6'4") 237.3 237.3
Overall length - Long Box (8') 259.3 259.3
Overall length - Long Box (8') DWR 259.3 259.3
Height - Standard Box (6'4") 78.4 79.8
Height - Long Box (8') 77.4 79.6
Height - Long Box (8') DRW 77.4 79.6

Exterior width of the Crew Cab:

Exterior width 4x2 4x4
Overall width - Standard Box (6'4") 79.4 79.4
Overall width - Long Box (8') 79.4 79.4
Overall width - Long Box (8') DRW 96.4 96.4

Interior dimensions

1st row dimensions Crew Cab
Head room 41
Shoulder room 66
Hip room 63.2
Leg room 41
2nd row dimensions Crew Cab
Head room 39.9
Shoulder room 65.7
Hip room 63.2
Leg room 40.3
