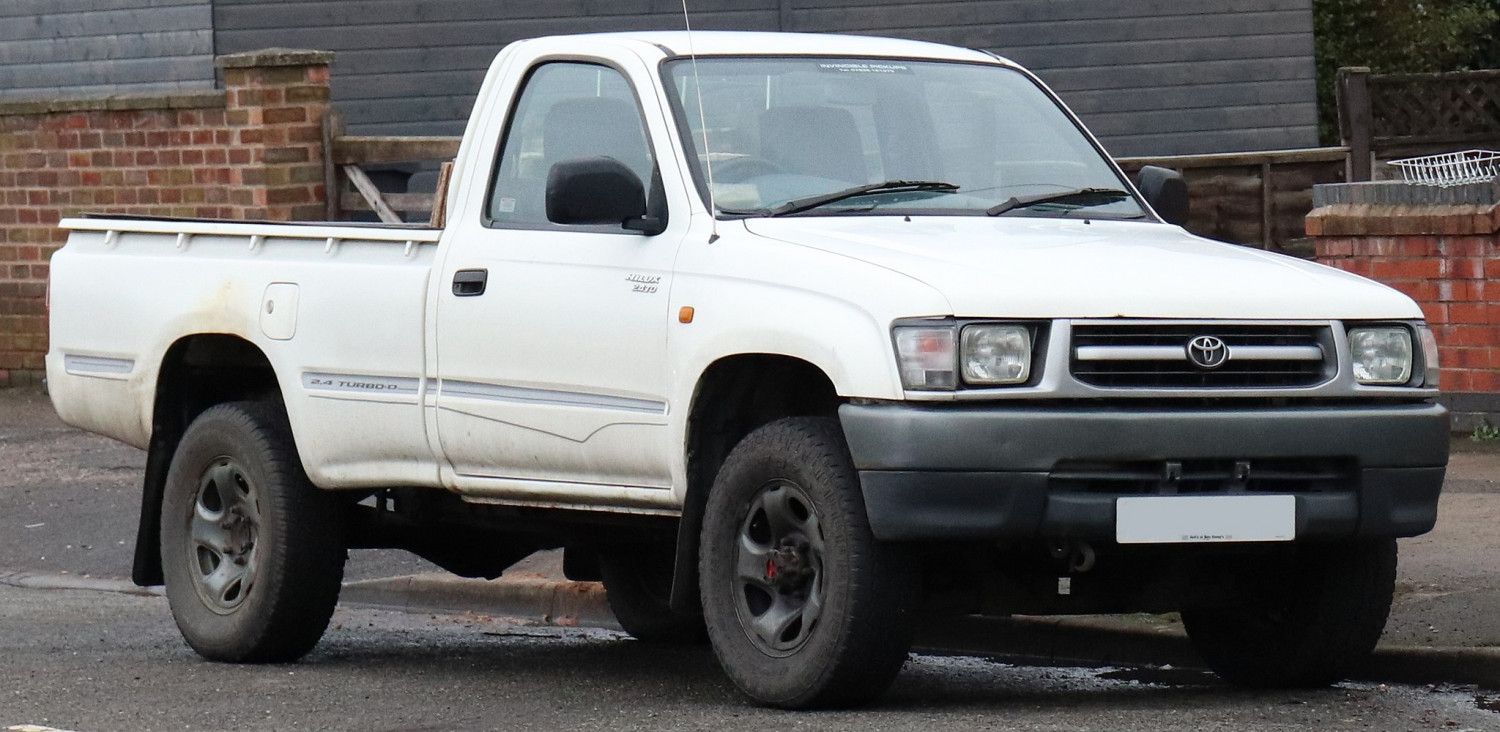

Vauxford, CC BY-SA 4.0, via Wikimedia Commons
Toyota HiLux - Single Cab Dimensions (1997-2005)
On this page you'll find the exact dimensions for the Toyota HiLux Single Cab Base, EX, GX generation 6, made from 1997 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 1997 - present Generation: 6 Type of van: pickup Model variant: Base EX GX Body style: Single Cab Also known as: N140 N150 N160 N170Dimensions in tables
HiLux truck bed dimensions (Single Cab)
| Truck bed dimensions | Single Cab |
|---|---|
| Volume (cu. ft.) | |
| Length at floor | 2160 |
| Inside height | 405 |
| Width at wheelhouse | |
| Maximum width at floor | 1465 |
Wheelbase of the HiLux:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase (mm) | 2850 |
Exterior dimensions of the HiLux Single Cab:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Overall length (mm) | 4725 | |
| Overall height (mm) | 1605 |
Exterior width of the Single Cab:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Overall width (mm) | 1690 |
Single Cab miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Ground clearance (mm) | 190 | |
| Load height at rear (mm) | 710 |
