Toyota HiLux - Single Cab Dimensions (1997-2005)

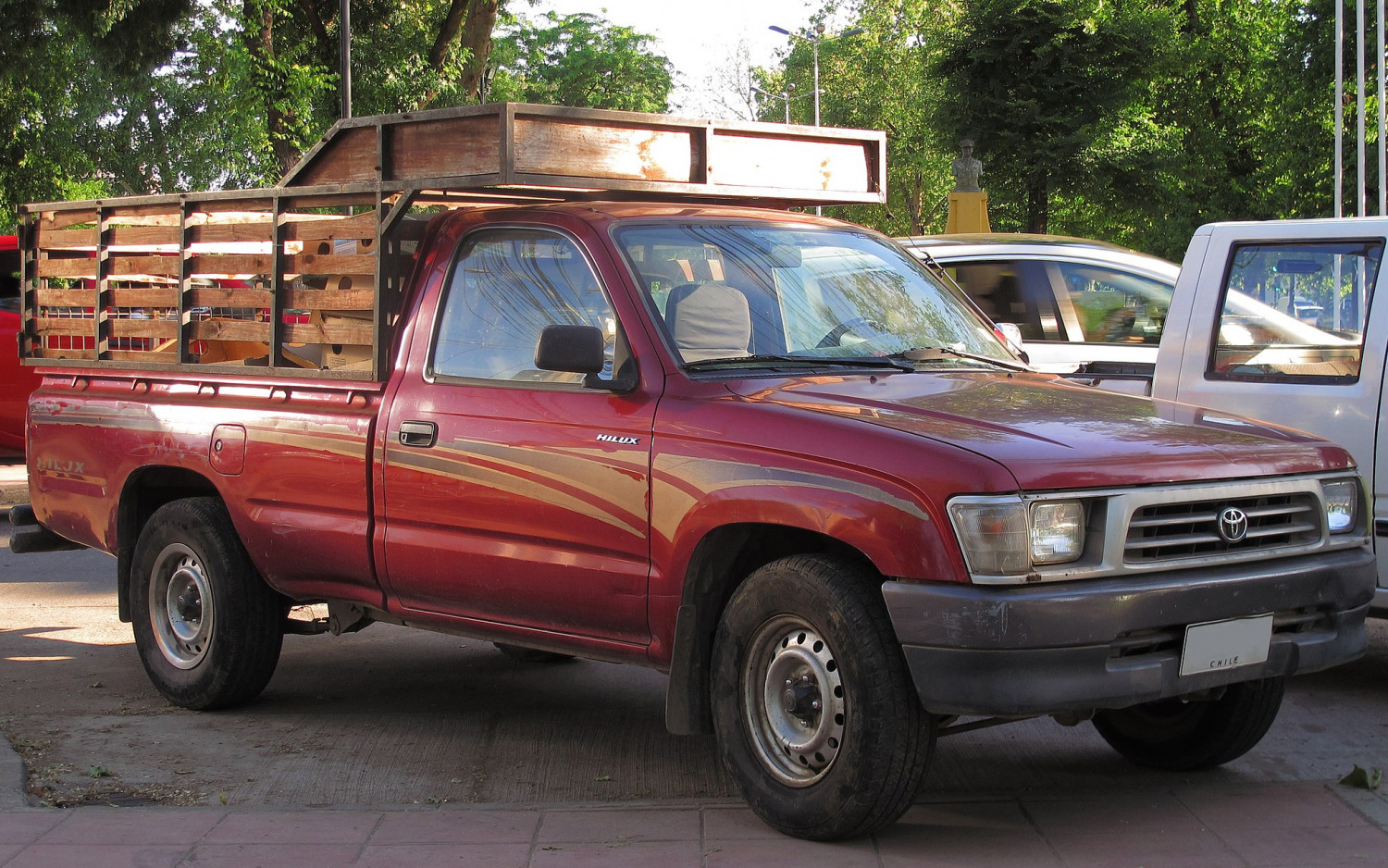

RL GNZLZ from Chile, CC BY-SA 2.0, via Wikimedia Commons

On this page you'll find the exact dimensions for the Toyota HiLux Single Cab Base, EX, GX generation 6, made from 1997 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 1997 - present Generation: 6 Type of van: pickup Model variant: Base EX GX Body style: Single Cab Also known as: N140 N150 N160 N170

Dimensions in tables

HiLux truck bed dimensions (Single Cab)

Truck bed dimensions Single Cab
Volume (cu. ft.)
Length at floor 2160
Inside height 405
Width at wheelhouse
Maximum width at floor 1465

Wheelbase of the HiLux:

Wheelbase Length (inch)
Wheelbase (mm) 2860

Exterior dimensions of the HiLux Single Cab:

Dimension 4x2 4x4
Overall length (mm) 4725
Overall height (mm) 1755

Exterior width of the Single Cab:

Exterior width 4x2 4x4
Overall width (mm) 1690

Single Cab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Ground clearance (mm) 225
Load height at rear (mm) 890
