Toyota Tacoma - Xtracab Dimensions (1994-2005)

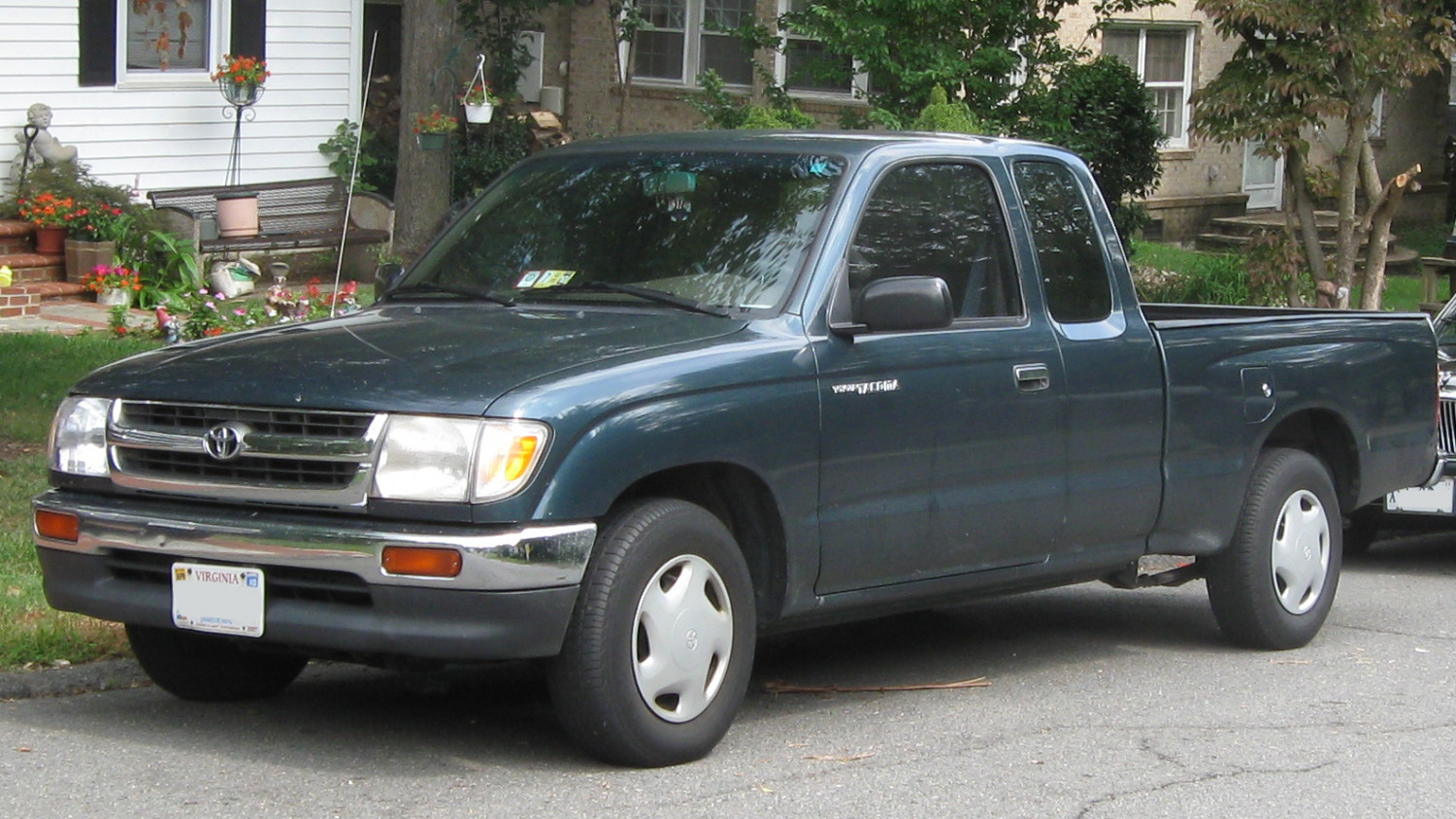

IFCAR, Public domain, via Wikimedia Commons

On this page you'll find the exact dimensions for the Toyota Tacoma Xtracab Base 4x4 generation 1, made from 1994 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 1994 - present Generation: 1 Type of van: pickup Model variant: Base 4x4 Body style: Xtracab Also known as: Toyota Hilux Toyota Land Cruiser Prado Toyota 4Runner Toyota T100

Dimensions in tables

Tacoma truck bed dimensions (Xtracab)

Truck bed dimensions Standard Box (6.5')
Volume (cu. ft.)
Length at floor 74.5
Inside height 15.9
Width at wheelhouse 57.9
Maximum width at floor

Wheelbase of the Tacoma:

Wheelbase Length (inch)
Standard Box (6.5') 121.9

Exterior dimensions of the Tacoma Xtracab:

Dimension 4x2 4x4
Length with rear bumper 202.3
Overall height 67.7
Overall height with available tires 68.9

Exterior width of the Xtracab:

Exterior width 4x2 4x4
Overall width 66.5

Xtracab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Ground clearance 10.8
Ground clearance with available tires 12

Interior dimensions

1st row dimensions Xtracab
Head room 38.4
Shoulder room 54.1
Hip room 54.6
Leg room 42.8
2nd row dimensions Xtracab
Head room 35.5
Shoulder room 53.3
Hip room 52.6
Leg room 27.2
