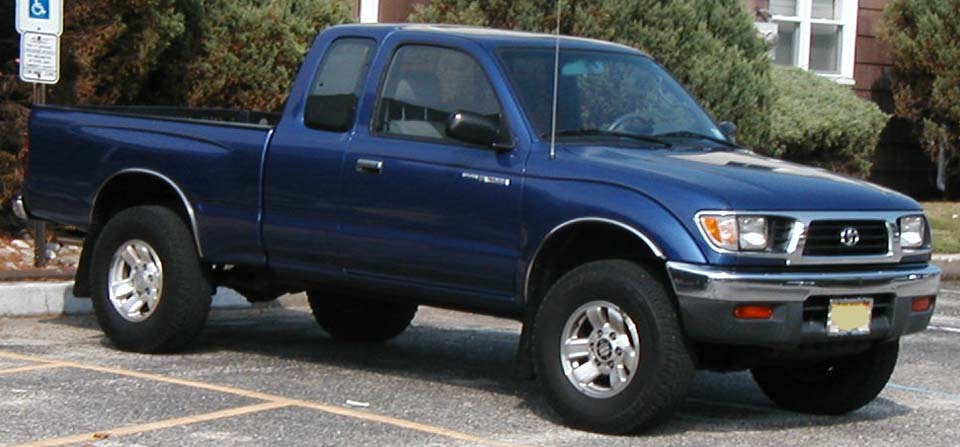

IFCAR, Public domain, via Wikimedia Commons
Toyota Tacoma - Xtracab Limited V6 Dimensions (1994-2005)
On this page you'll find the exact dimensions for the Toyota Tacoma Xtracab Limited V6 Base 4x4 generation 1, made from 1994 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 1994 - present Generation: 1 Type of van: pickup Model variant: Base 4x4 Body style: Xtracab Limited V6 Also known as: Toyota Hilux Toyota Land Cruiser Prado Toyota 4Runner Toyota T100Dimensions in tables
Tacoma truck bed dimensions (Xtracab Limited V6)
| Truck bed dimensions | Standard Box (6.5') |
|---|---|
| Volume (cu. ft.) | |
| Length at floor | 74.5 |
| Inside height | 15.9 |
| Width at wheelhouse | 57.9 |
| Maximum width at floor |
Wheelbase of the Tacoma:
| Wheelbase | Length (inch) |
|---|---|
| Standard Box (6.5') | 121.9 |
Exterior dimensions of the Tacoma Xtracab Limited V6:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Length with rear bumper | 202.3 | |
| Overall height | 67.7 | |
| Overall height with available tires | 68.9 |
Exterior width of the Xtracab Limited V6:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Overall width | 66.5 |
Xtracab Limited V6 miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Ground clearance | 10.8 | |
| Ground clearance with available tires | 12 |
Interior dimensions
| 1st row dimensions | Xtracab Limited V6 |
|---|---|
| Head room | 38.4 |
| Shoulder room | 54.1 |
| Hip room | 54.6 |
| Leg room | 42.8 |
| 2nd row dimensions | Xtracab Limited V6 |
| Head room | 35.5 |
| Shoulder room | 53.3 |
| Hip room | 52.6 |
| Leg room | 27.2 |
