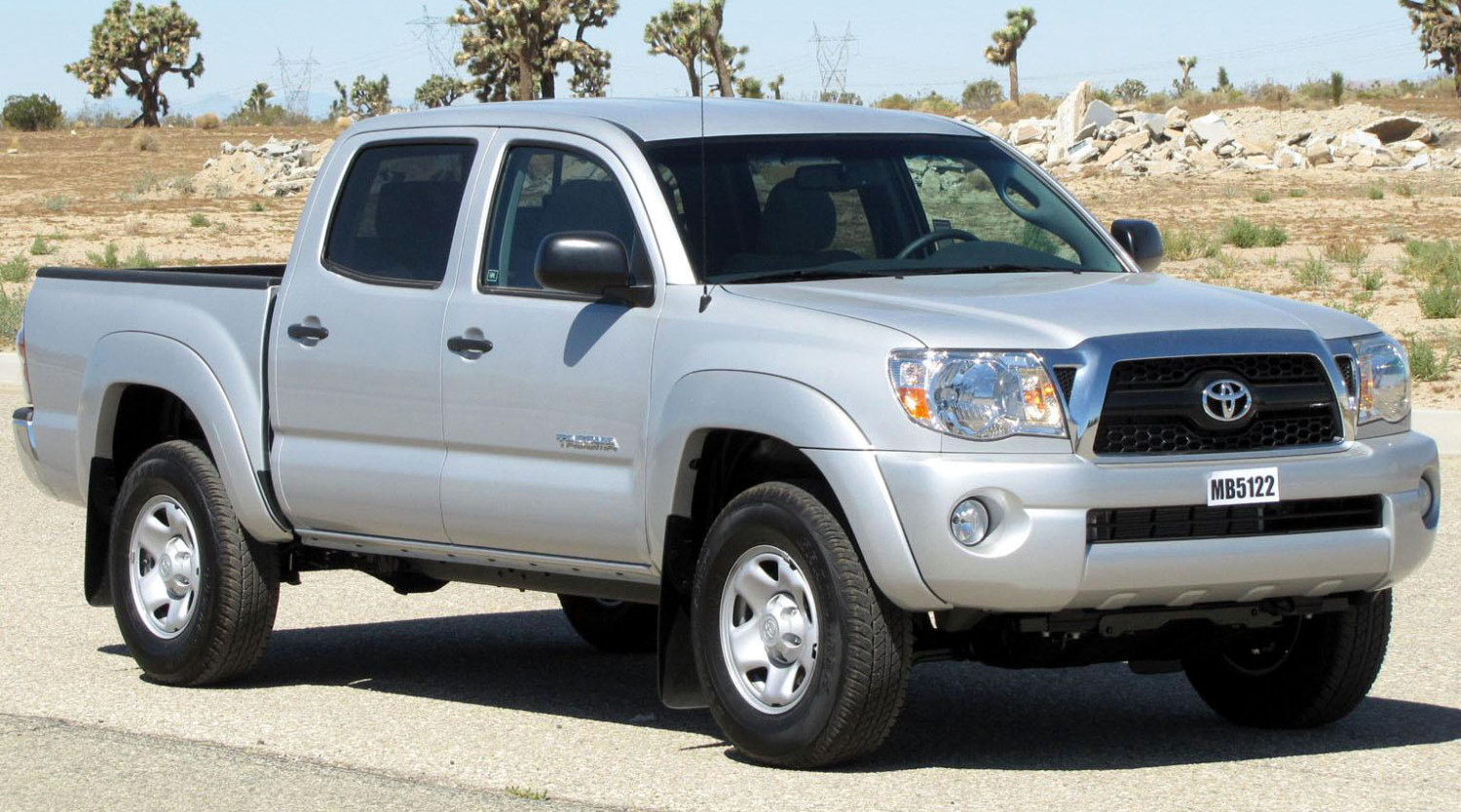

On this page you'll find the exact dimensions for the Toyota Tacoma Double Cab Base, PreRunner, X-Runner generation 2, made from 2005 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

---

Dimensions in tables

Tacoma truck bed dimensions (Double Cab)

Truck bed dimensions	Short Bed (5')	Long Bed (6')
Volume (cu. ft.)
Length at floor	60.3	73.5
Inside height	18	18
Width at wheelhouse	41.5	41.5
Maximum width at floor	56.7	56.7

Wheelbase of the Tacoma:

Wheelbase	Length (inch)
Short Bed (5')	127.4
Long Bed (6')	140.6

Exterior dimensions of the Tacoma Double Cab:

Dimension	4x2	4x4
Overall length - Short Bed (5')	208.1	208.1
Overall length - Long Bed (6')		221.3
Overall height - Short Bed (5')	66.1	70.1
Overall height - Long Bed (6')		70.1

Exterior width of the Double Cab:

Exterior width	4x2	4x4
Overall width - Short Bed (5')	74.6	74.6
Overall width - Long Bed (6')		74.6

Double Cab miscellaneous dimensions

Miscellaneous dimensions	4x2	4x4
Ground clearance - Short Bed (5')	7.9	9.1
Ground clearance - Long Bed (6')		9.1

Interior dimensions

1st row dimensions	Double Cab
Head room	40.2
Shoulder room	57.7
Hip room	53.5
Leg room	41.7
2nd row dimensions	Double Cab
Head room	38.4
Shoulder room	58.7
Hip room	54.6
Leg room	32.7

Turning circle of the Tacoma:

Turning circle:	Kerb-to-kerb	Wall-to-wall
Turning circle diameter - 4x2	40.7
Turning circle diameter - 4x4	44
