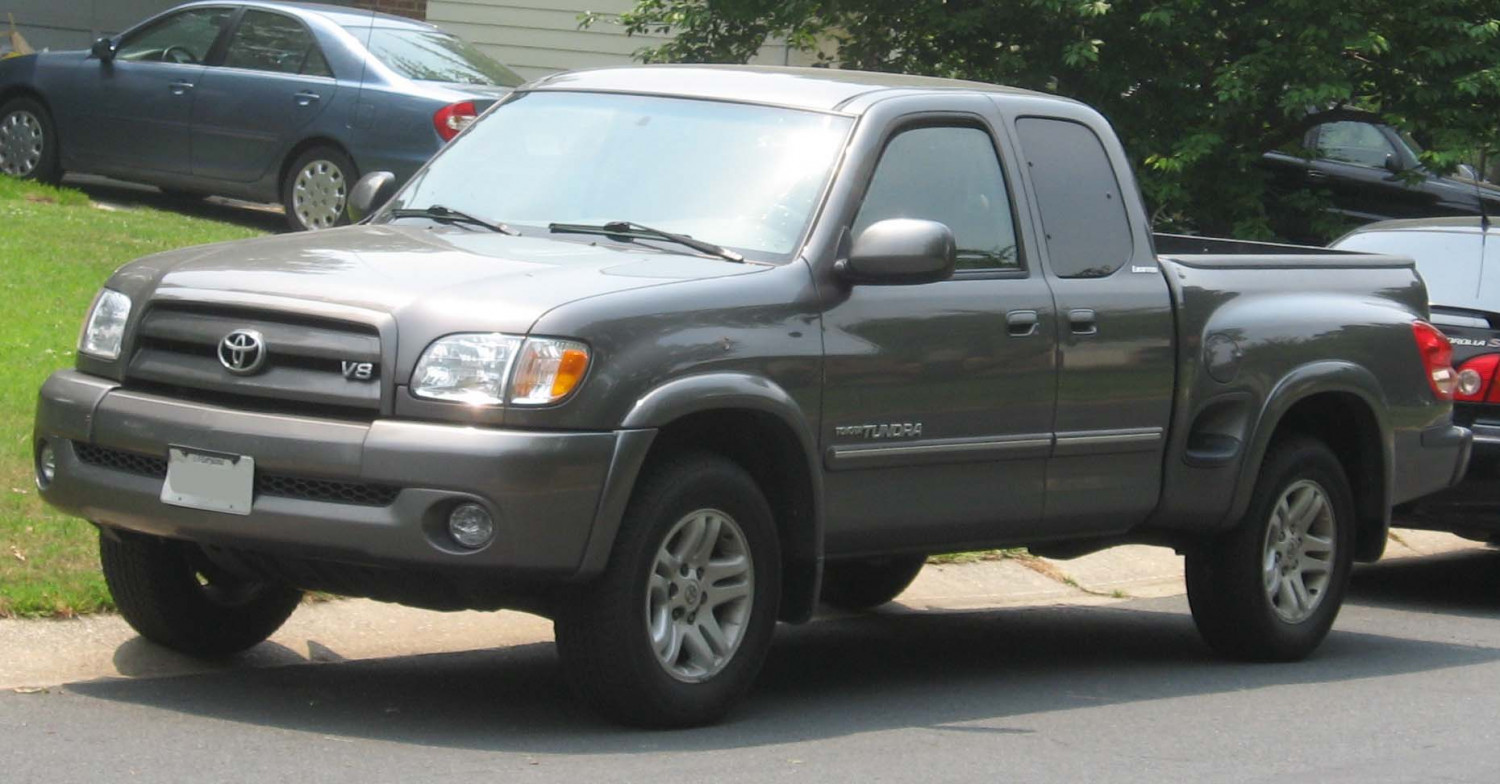

On this page you'll find the exact dimensions for the Toyota Tundra Access Cab Base, SR5, Limited generation 1, made from 2000 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

---

Dimensions in tables

Tundra truck bed dimensions (Access Cab)

Truck bed dimensions	Short Bed (6')
Volume (cu. ft.)
Length at floor	76.5
Inside height	16.7
Width at wheelhouse	49.3
Maximum width at floor	61.2

Wheelbase of the Tundra:

Wheelbase	Length (inch)
Short Bed (6')	128.3

Exterior dimensions of the Tundra Access Cab:

Dimension	4x2	4x4
Length with rear bumper - Short Bed (6')	217.5	217.5
Overall height - Short Bed (6')	70.7	71.5
Overall height - Short Bed (6') - V8	70.5	71.3

Exterior width of the Access Cab:

Exterior width	4x2	4x4
Overall width - Short Bed (6')	75.2	75.2

Access Cab miscellaneous dimensions

Miscellaneous dimensions	4x2	4x4
Overhang - Front	36.2	36.2
Overhang - Rear w/o bumper	53	53
Min. running ground clearance - Short Bed (6')	10.6	11.4
Min. running ground clearance - Short Bed (6') - V8	10.4	11.2

Interior dimensions

1st row dimensions	Access Cab
Head room	40.3
Shoulder room	62.4
Hip room	59.3
Leg room	41.5
2nd row dimensions	Access Cab
Head room	37
Shoulder room	63.2
Hip room	56.6
Leg room	29.6

Turning circle of the Tundra:

Turning circle:	Kerb-to-kerb	Wall-to-wall
Turning circle diameter - 4x2	44.9
Turning circle diameter - 4x4	44.3
