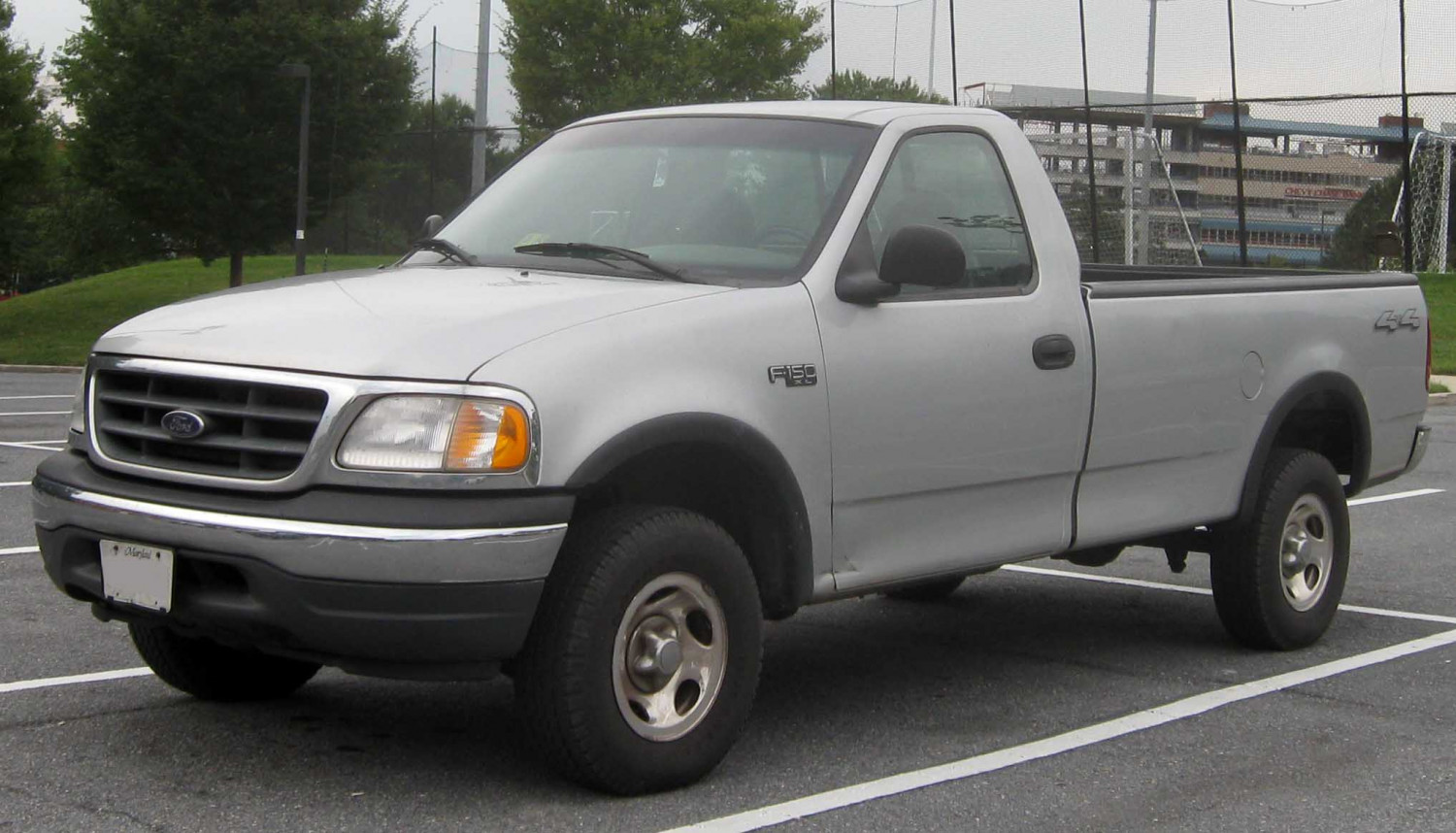

Example of a F150:
IFCAR , Public domain, via Wikimedia Commons
Are these dimensions right for you?
Production years:
1997 -
2004
Generation:
10
Type of van:
pickup
Body styles:
Regular Cab
Also called:
Ford Lobo
Ford F-250
Ford F150 Heritage
Dimensions in tables
Jump to dimension:
truck bed
outside
inside
wheelbase
clearance
load height
Truck bed dimensions
Styleside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
58.6
72.6
Length at floor
78.8
97
Inside height
20
20
Width at wheelhouse
50
50
Maximum width at floor
65.2
65.2
Flareside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
50.2
Length at floor
78.8
Inside height
20
Width at wheelhouse
50
Maximum width at floor
59.7
Wheelbase of the F150:
Wheelbase length:
4x2
4x4
Short (5.5')
119.9
120.2
Long (8')
138.5
138.8
FLARESIDE
119.9
120.2
Turning circle of the F150:
Turning circle:
Kerb-to-kerb
Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')
Exterior length of the F150:
Exterior length
4x2
4x4
Short wheelbase (5.5')
206.9
207.2
Long wheelbase (8')
225.5
225.8
Flareside
206.9
207.2
Exterior height of the F150:
Exterior height
4x2
4x4
Short wheelbase (5.5')
72.7
75.4
Long wheelbase (8')
72.4
75.1
FLARESIDE
72.7
75.4
Exterior width of the F150:
Exterior width
4x2
4x4
Width (excluding mirrors)
78.3
79.5
Width (including standard mirrors)
89.7
89.7
Width (standard mirrors folded)
Width (including trailer tow mirrors)
Miscellaneous dimensions
Exterior dimensions
4x2
4x4
Overhang - Front
38.7
38.7
Overhang - Rear
48.3
48.3
Load floor height - 5.5'
33.2
36.3
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'
8
8.1
Ground clearance - 6.5'
Ground clearance - 8'
Cab length
Interior dimensions
1st row
Styleside
Flareside
Head room
40.8
Shoulder room
63.8
Hip room
61
Leg room
40.9
2nd row
Styleside
Flareside
Head room
Shoulder room
Hip room
Leg room
