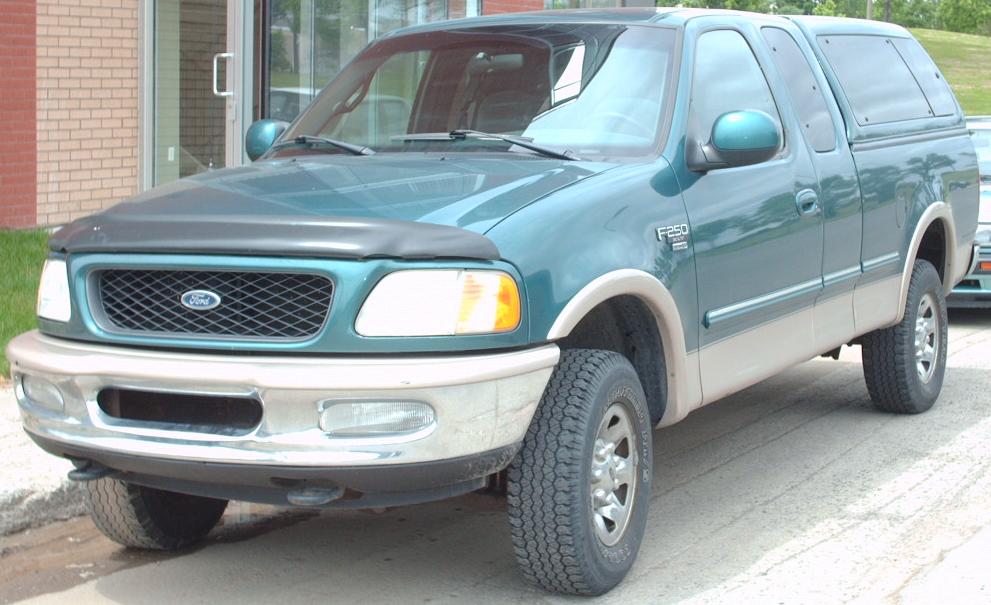

Example of a F-150:

---

Dimensions in tables

Jump to dimension: truck bed outside inside wheelbase clearance load height

Truck bed dimensions

Styleside truck bed dimensions	SWB	MWB	LWB
Volume (cu. ft.)		58.6	72.6
Length at floor		78.8	97
Inside height		20	20
Width at wheelhouse		50	50
Maximum width at floor		65.2	65.2

Flareside truck bed dimensions	SWB	MWB	LWB
Volume (cu. ft.)		50.2
Length at floor		78.8
Inside height		20
Width at wheelhouse		50
Maximum width at floor		59.7

Wheelbase of the F-150:

Wheelbase length:	4x2	4x4
Short (5.5')	138.5	138.8
Long (8')	157.1	157.4
FLARESIDE	138.5	138.8

Turning circle of the F-150:

Turning circle:	Kerb-to-kerb	Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')

Exterior length of the F-150:

Exterior length	4x2	4x4
Short wheelbase (5.5')	225.5	225.8
Long wheelbase (8')	244.1	244.4
Flareside	225.5	225.8

Exterior height of the F-150:

Exterior height	4x2	4x4
Short wheelbase (5.5')	72.8	75.5
Long wheelbase (8')	72.5	75.1
FLARESIDE	72.8	75.5

Exterior width of the F-150:

Exterior width	4x2	4x4
Width (excluding mirrors)	78.3	79.5
Width (including standard mirrors)	89.7	89.7
Width (standard mirrors folded)
Width (including trailer tow mirrors)

Miscellaneous dimensions

Exterior dimensions	4x2	4x4
Overhang - Front	38.7	38.7
Overhang - Rear	48.3	48.3
Load floor height - 5.5'	32.3	34.9
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'	7.3	8.1
Ground clearance - 6.5'
Ground clearance - 8'
Cab length

Interior dimensions

1st row	Styleside	Flareside
Head room	40.8
Shoulder room	63.8
Hip room	61
Leg room	40.9

2nd row	Styleside	Flareside
Head room
Shoulder room
Hip room
Leg room
