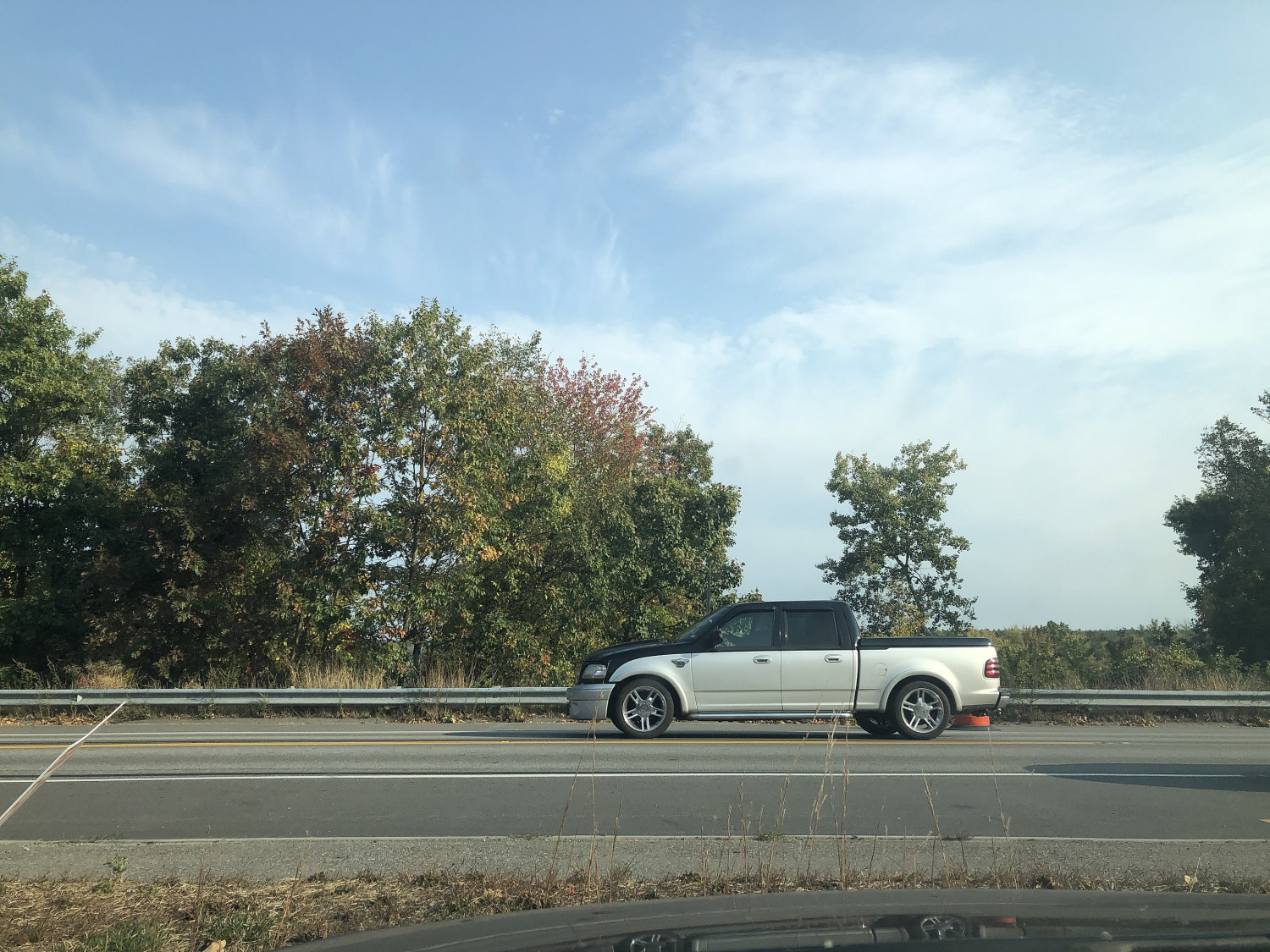

Example of a F150:
By Austin102 - Own work, CC BY-SA 4.0
Are these dimensions right for you?
Production years:
1997 -
2004
Generation:
10
Type of van:
pickup
Body styles:
SuperCrew
Also called:
Ford Lobo
Ford F-250
Ford F150 Heritage
Dimensions in tables
Jump to dimension:
truck bed
outside
inside
wheelbase
clearance
load height
Truck bed dimensions
Styleside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
44.2
Length at floor
70.2
Inside height
20.2
Width at wheelhouse
50
Maximum width at floor
57.7
Flareside truck bed dimensions
SWB
MWB
LWB
Volume (cu. ft.)
Length at floor
Inside height
Width at wheelhouse
Maximum width at floor
Wheelbase of the F150:
Wheelbase length:
4x2
4x4
Short (5.5')
138.5
138.8
Medium (6.5')
Long (8')
Turning circle of the F150:
Turning circle:
Kerb-to-kerb
Wall-to-wall
Short wheelbase (5.5')
Medium wheelbase (6.5')
Long wheelbase (8')
Exterior length of the F150:
Exterior length
4x2
4x4
Short wheelbase (5.5')
225.9
226.2
Medium wheelbase (6.5')
Long wheelbase (8')
Flareside (SWB - 5.5')
Exterior height of the F150:
Exterior height
4x2
4x4
Short wheelbase (5.5')
73.9
76.9
Medium wheelbase (6.5')
Long wheelbase (8')
Exterior width of the F150:
Exterior width
4x2
4x4
Width (excluding mirrors)
79.1
79.9
Width (including standard mirrors)
90.3
90.3
Width (standard mirrors folded)
Width (including trailer tow mirrors)
Miscellaneous dimensions
Exterior dimensions
4x2
4x4
Overhang - Front
38.7
38.7
Overhang - Rear
48.7
48.7
Load floor height - 5.5'
32
35
Load floor height - 6.5'
Load floor height - 8'
Ground clearance - 5.5'
8
8
Ground clearance - 6.5'
Ground clearance - 8'
Cab length
Interior dimensions
1st row
Styleside
Flareside
Head room
39.8
Shoulder room
63.7
Hip room
59.8
Leg room
41
2nd row
Styleside
Flareside
Head room
Shoulder room
Hip room
Leg room
