Isuzu D-Max - Crew Cab Dimensions (2019-)

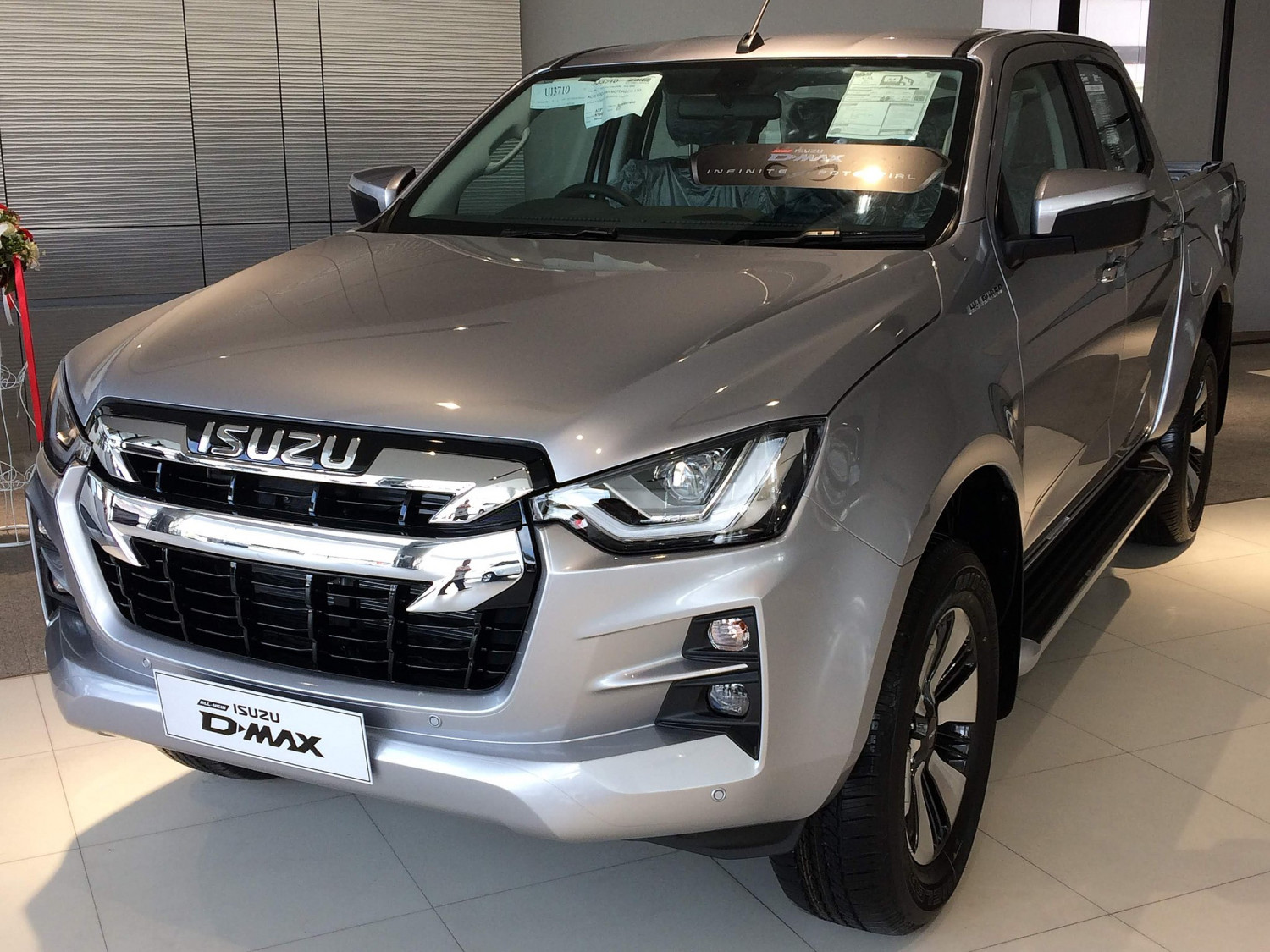

Chanokchon, CC BY-SA 4.0, via Wikimedia Commons

On this page you'll find the exact dimensions for the Isuzu D-Max Crew Cab SX, LS-M, LS-U, LS-T generation 3, made from 2019 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2019 - present Generation: 3 Type of van: pickup Model variant: SX LS-M LS-U LS-T Body style: Crew Cab Also known as: RG01

Dimensions in tables

D-Max truck bed dimensions (Crew Cab)

Truck bed dimensions Crew Cab
Volume (cu. ft.)
Length at floor 1552
Inside height 465
Width at wheelhouse 1105
Maximum width at floor 1530

Wheelbase of the D-Max:

Wheelbase Length (inch)
Wheelbase (mm) 3095

Exterior dimensions of the D-Max Crew Cab:

Dimension 4x2 4x4
Overall length (mm) 5295 5295
Overall height (mm) 1855 1855

Exterior width of the Crew Cab:

Exterior width 4x2 4x4
Overall width - excluding door mirrors (mm) 1860 1860

Crew Cab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Front overhang (mm) 905 905
Rear overhang (mm) 1295 1295
Ground clearance (mm) 235 235

Interior dimensions

1st row dimensions Crew Cab
Head room 1005
Shoulder room 1460
Hip room
Leg room 1070
2nd row dimensions Crew Cab
Head room
Shoulder room
Hip room
Leg room 915

Turning circle of the D-Max:

Turning circle: Kerb-to-kerb Wall-to-wall
Turning circle diameter between kerbs (m) 12.6
