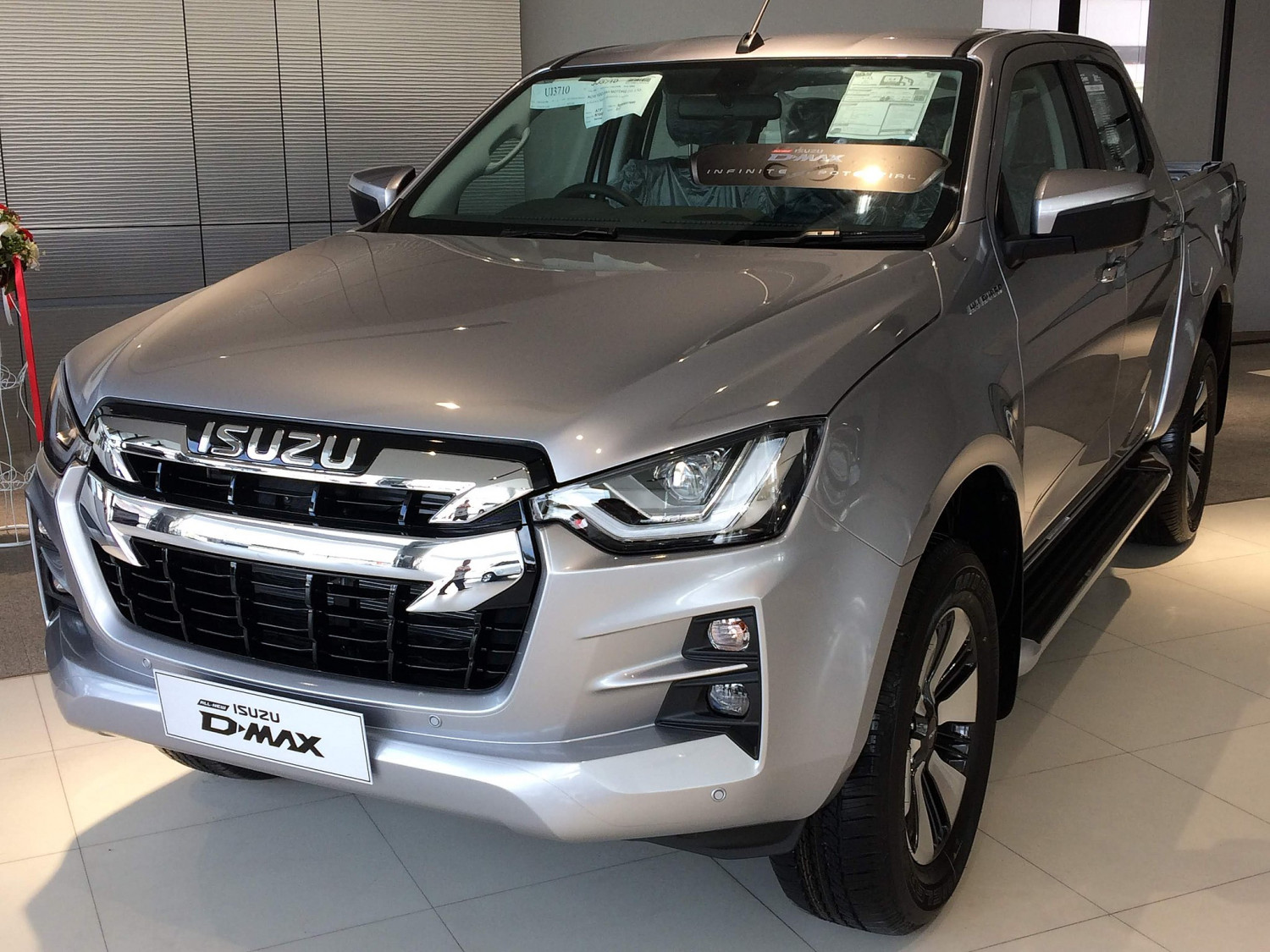

This is a picture of the Crew Cab, we where unable to find a good image of a Space Cab model.
Isuzu D-Max - Space Cab Dimensions (2019-)
On this page you'll find the exact dimensions for the Isuzu D-Max Space Cab SX, LS-M, LS-U, LS-T generation 3, made from 2019 and currently still being produced. Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2019 - present Generation: 3 Type of van: pickup Model variant: SX LS-M LS-U LS-T Body style: Space Cab Also known as: RG01Dimensions in tables
D-Max truck bed dimensions (Space Cab)
| Truck bed dimensions | Space Cab |
|---|---|
| Volume (cu. ft.) | |
| Length at floor | 1825 |
| Inside height | 465 |
| Width at wheelhouse | 1105 |
| Maximum width at floor | 1530 |
Wheelbase of the D-Max:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase (mm) | 3095 |
Exterior dimensions of the D-Max Space Cab:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Overall length (mm) | 5295 | |
| Overall height (mm) | 1850 |
Exterior width of the Space Cab:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Overall width - excluding door mirrors (mm) | 1860 |
Space Cab miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Front overhang (mm) | 905 | |
| Rear overhang (mm) | 1295 | |
| Ground clearance (mm) | 235 |
Interior dimensions
| 1st row dimensions | Space Cab |
|---|---|
| Head room | 1005 |
| Shoulder room | 1460 |
| Hip room | |
| Leg room | 1070 |
| 2nd row dimensions | Space Cab |
| Head room | |
| Shoulder room | |
| Hip room | |
| Leg room | 740 |
Turning circle of the D-Max:
| Turning circle: | Kerb-to-kerb | Wall-to-wall |
|---|---|---|
| Turning circle diameter between kerbs (m) | 12.6 |
