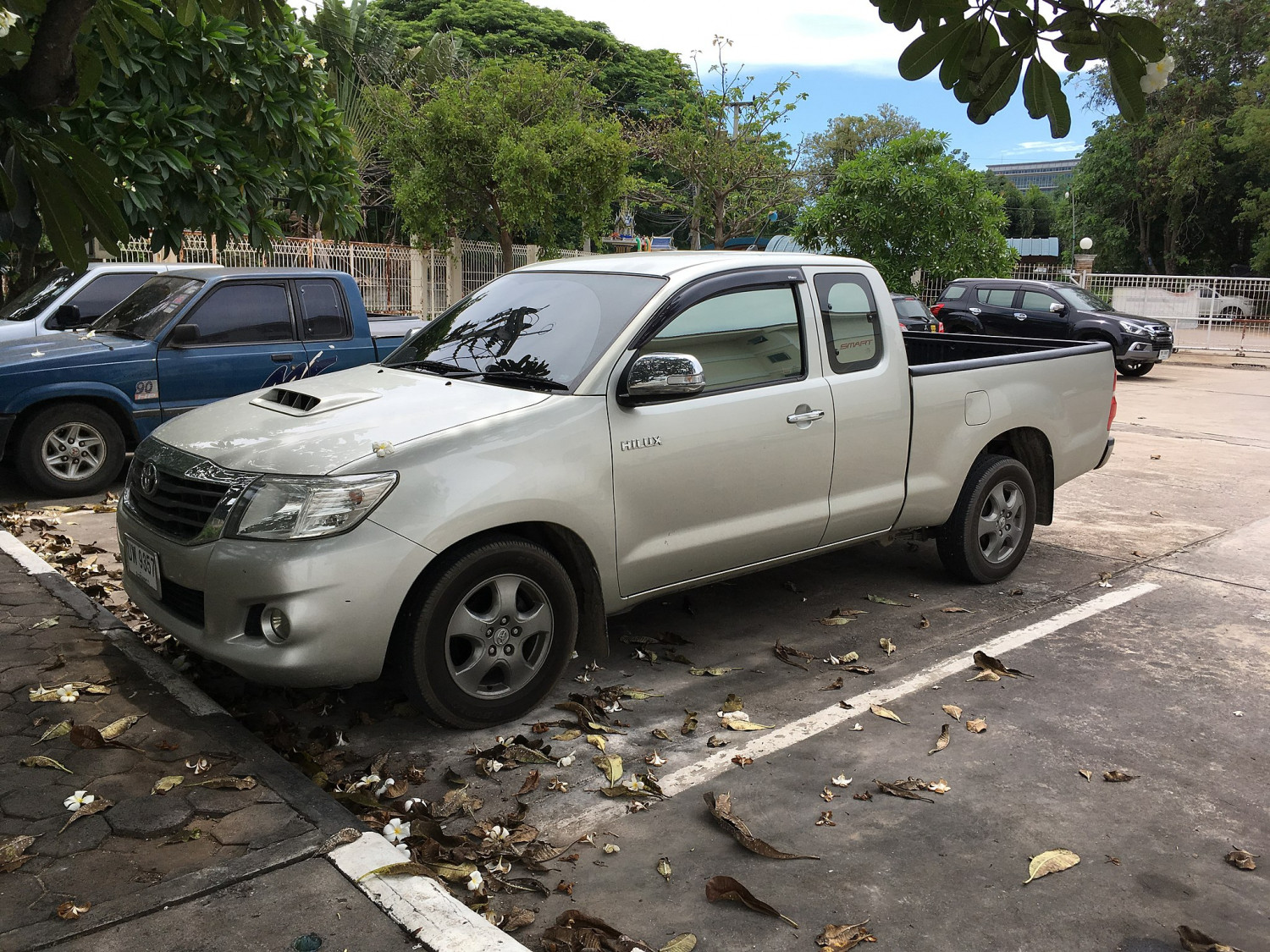

Toyota HiLux - Extra Cab Dimensions (2004-2015)

LoveTripSpotting, CC BY-SA 4.0, via Wikimedia Commons

On this page you'll find the exact dimensions for the Toyota HiLux Extra Cab Base generation 7, made from 2004 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:

Are these dimensions right for you?

Production years: 2004 - present Generation: 7 Type of van: pickup Model variant: Base Body style: Extra Cab Also known as: TruckMasters OX AN10 AN20 AN30

Dimensions in tables

HiLux truck bed dimensions (Extra Cab)

Truck bed dimensions Extra Cab
Volume (cu. ft.)
Length at floor 1830
Inside height 450
Width at wheelhouse
Maximum width at floor 1515

Wheelbase of the HiLux:

Wheelbase Length (inch)
Wheelbase (mm) 3085

Exterior dimensions of the HiLux Extra Cab:

Dimension 4x2 4x4
Length (mm) 5260 5260
Height (mm) 1835 1835

Exterior width of the Extra Cab:

Exterior width 4x2 4x4
Width - with overfenders (mm) 1835 1835
Width - without overfenders (mm) 1760 1760

Extra Cab miscellaneous dimensions

Miscellaneous dimensions 4x2 4x4
Minimum running ground clearance (mm) 212 212

Turning circle of the HiLux:

Turning circle: Kerb-to-kerb Wall-to-wall
Minimum turning radius - tyre, 4x2 (m) 6.1
Minimum turning radius - tyre, 4x4 (m) 6.2
Minimum turning radius - body, 4x2 (m) 6.5
Minimum turning radius - body, 4x4 (m) 6.6
