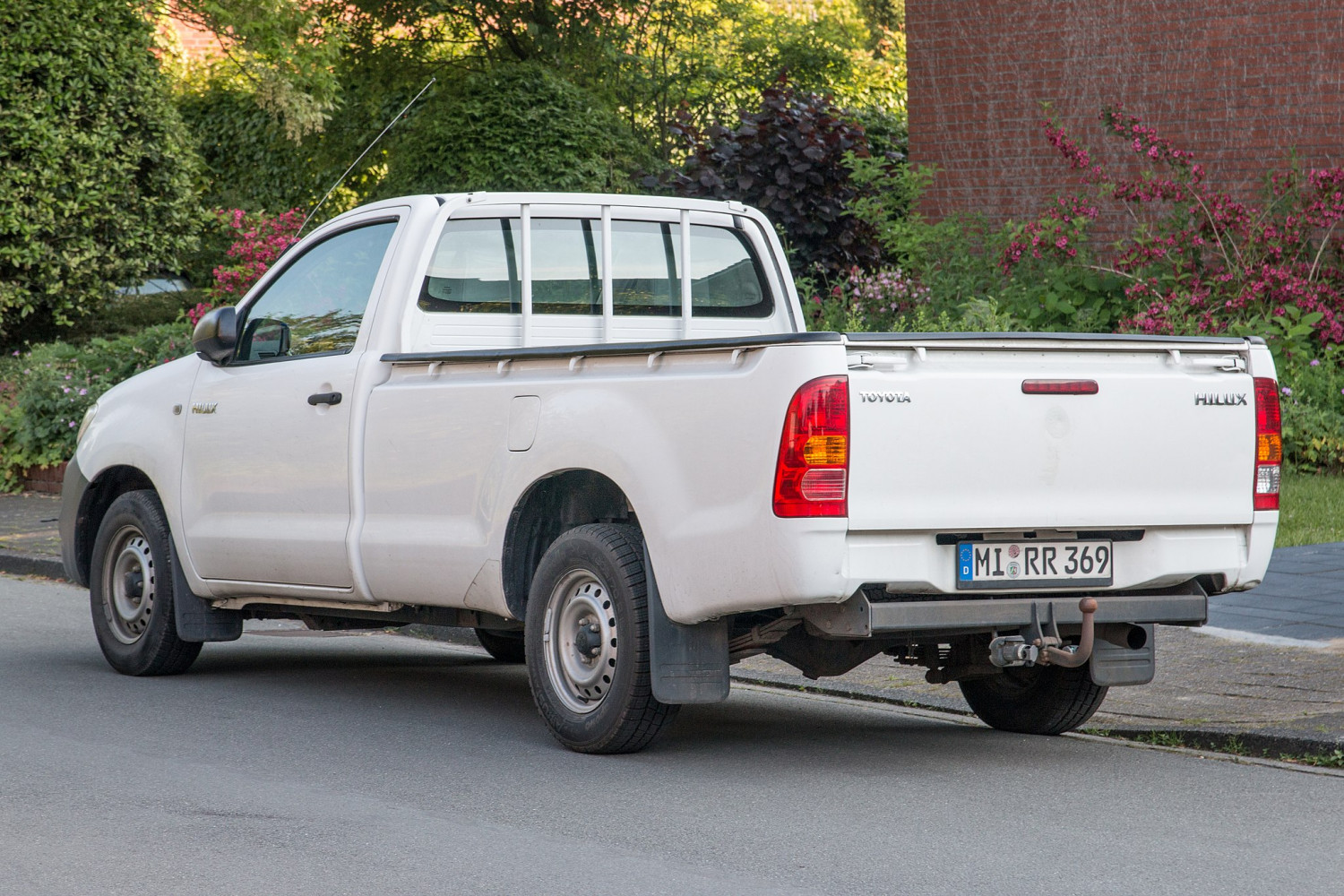

Johannes Maximilian, GFDL 1.2, via Wikimedia Commons
Toyota HiLux - Single Cab Dimensions (2004-2015)
On this page you'll find the exact dimensions for the Toyota HiLux Single Cab Base generation 7, made from 2004 to . Below we'll list the dimensions for this pickup from verified sources. First, let's make sure you have the right dimensions in front of you:
Are these dimensions right for you?
Production years: 2004 - present Generation: 7 Type of van: pickup Model variant: Base Body style: Single Cab Also known as: TruckMasters OX AN10 AN20 AN30Dimensions in tables
HiLux truck bed dimensions (Single Cab)
| Truck bed dimensions | Single Cab |
|---|---|
| Volume (cu. ft.) | |
| Length at floor | 2340 |
| Inside height | 450 |
| Width at wheelhouse | |
| Maximum width at floor | 1520 |
Wheelbase of the HiLux:
| Wheelbase | Length (inch) |
|---|---|
| Wheelbase (mm) | 3085 |
Exterior dimensions of the HiLux Single Cab:
| Dimension | 4x2 | 4x4 |
|---|---|---|
| Length (mm) | 5260 | 5260 |
| Height (mm) | 1795 | 1795 |
Exterior width of the Single Cab:
| Exterior width | 4x2 | 4x4 |
|---|---|---|
| Width - with overfenders (mm) | 1835 | 1835 |
| Width - without overfenders (mm) | 1760 | 1760 |
Single Cab miscellaneous dimensions
| Miscellaneous dimensions | 4x2 | 4x4 |
|---|---|---|
| Minimum running ground clearance (mm) | 212 | 212 |
Turning circle of the HiLux:
| Turning circle: | Kerb-to-kerb | Wall-to-wall |
|---|---|---|
| Minimum turning radius - tyre, 4x2 (m) | 6.1 | |
| Minimum turning radius - tyre, 4x4 (m) | 6.2 | |
| Minimum turning radius - body, 4x2 (m) | 6.5 | |
| Minimum turning radius - body, 4x4 (m) | 6.6 |
